Products
HYPERFLEX™Coupling
HYPERFLEX™ Coupling has two types.
MT type is a compression stress type, which enables compact design with large transmission torque.
MH type model uses shearing stress of elastic rubber.
Construction
●MT type
・Flange material is gray cast iron (FC250).
・Two types of materials are available for the elastic body: synthetic rubber and oil- and abrasion-resistant polyurethane.
●MH type
・Flange material is gray cast iron (FC200).
・Standard elastic body type consisting of synthetic rubber alone and super type (MHP type) consisting of synthetic rubber with an iron core for reinforcement.

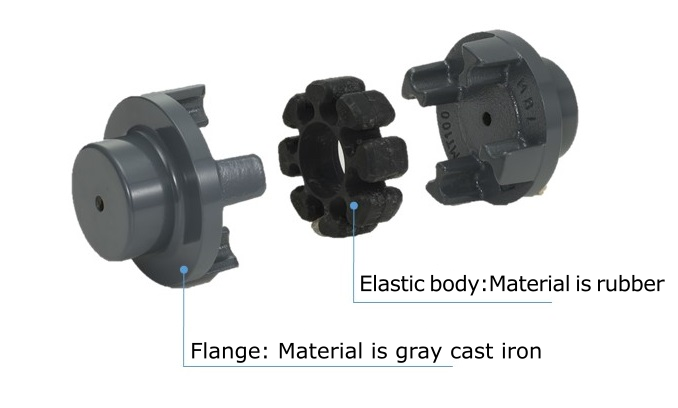

MT type（Elastic body: synthetic rubber）

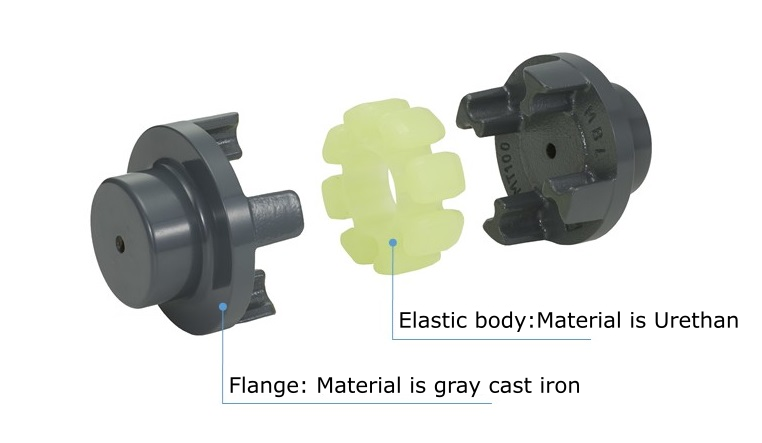

MT type（Elastic body: polyurethane）

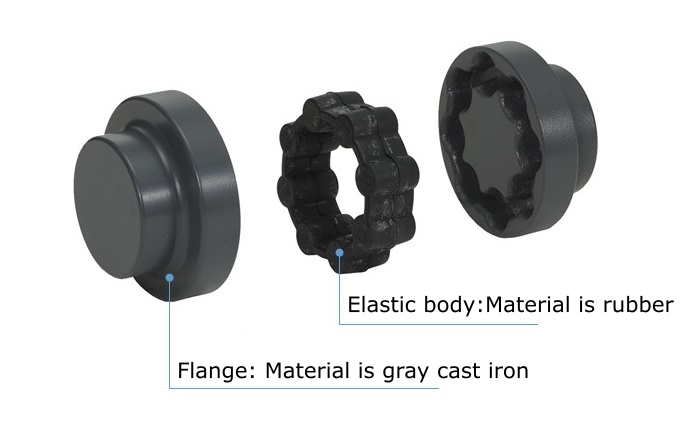

MH type（Elastic body: synthetic rubber ）
MHP type（Elastic body: synthetic rubber with an iron core）
※The elastic body with reinforcing steel core is no different from the standard from the outside.
Features
●MT type
・Suitable for all kinds of applications.
・Compact size with large transmission torque.
・Easy-to-install and maintenance-free.
・The polyurethane elastic body features excellent oil and abrasion resitance.
●MH type
・High flexibility and excellent shock absorption.
・Applicable as a torque limiter.

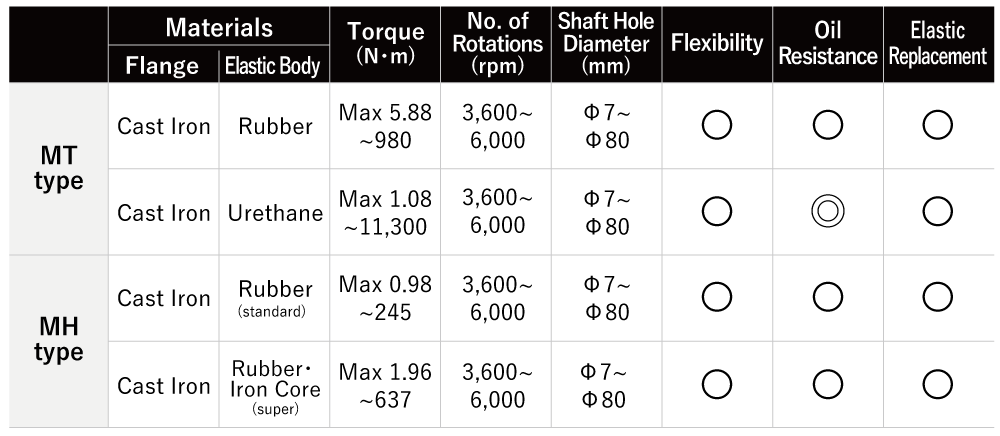

Characteristic table
◎：especially suitable
○：suitable
