摩耗に強く、ふるい分け精度の向上、取り換え作業が簡単。

特長

□耐摩耗性の優れたポリウレタンで、寿命は金網の3~10倍です。
□ロープタイプのため、目詰まりの少ない特殊網目構造になっています。
□軽量で一体成形のフックの採用で取り付けが簡単です。

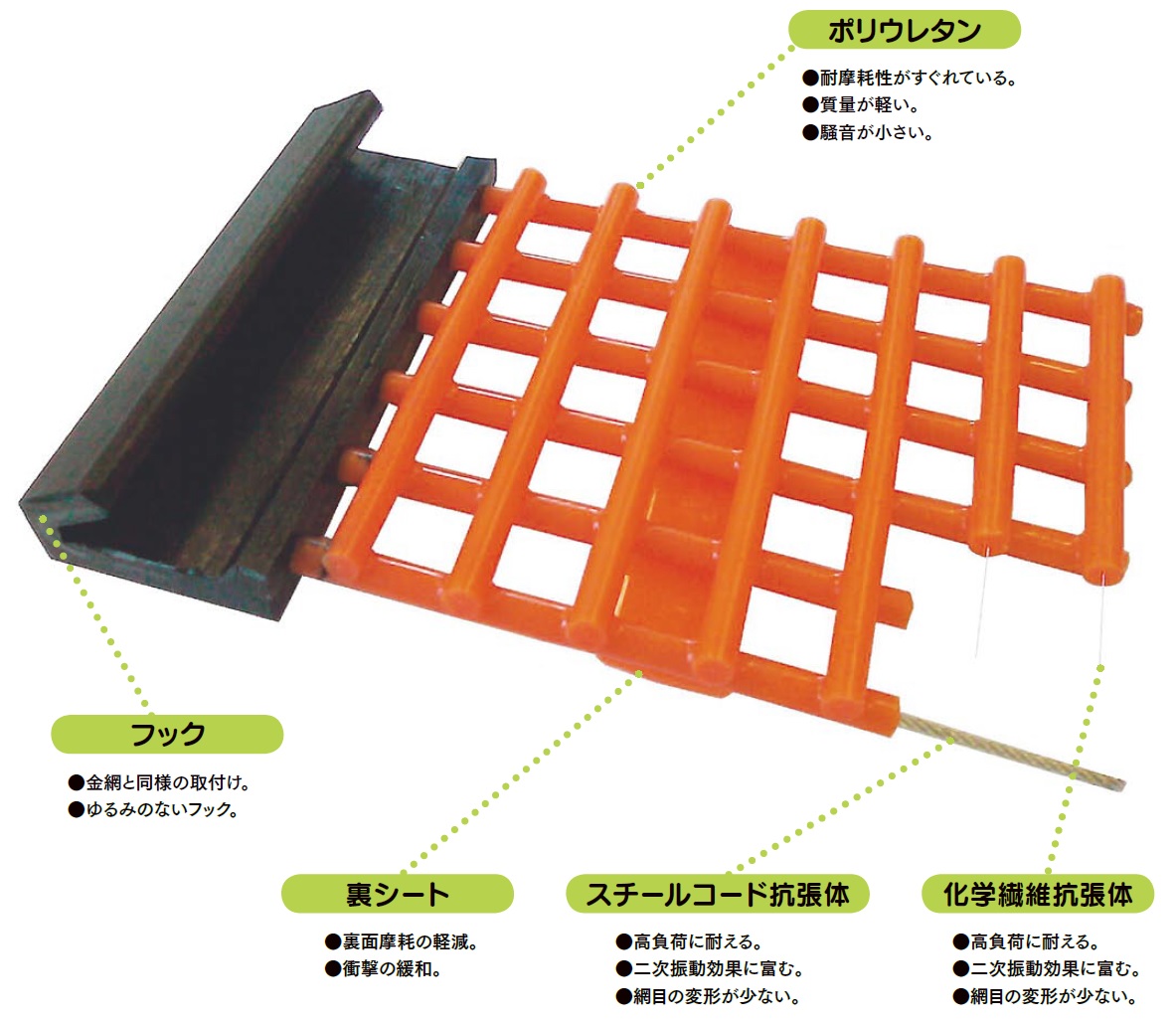

〇摩耗に強いポリウレタンロープ<br/>〇専用の溶着機による安定した精度の網目<br/>〇正確で乱れない網目-特殊抗張体入りのロープ

〇摩耗に強いポリウレタンロープ
〇専用の溶着機による安定した精度の網目
〇正確で乱れない網目-特殊抗張体入りのロープ

スクリーンURのサイズ表示

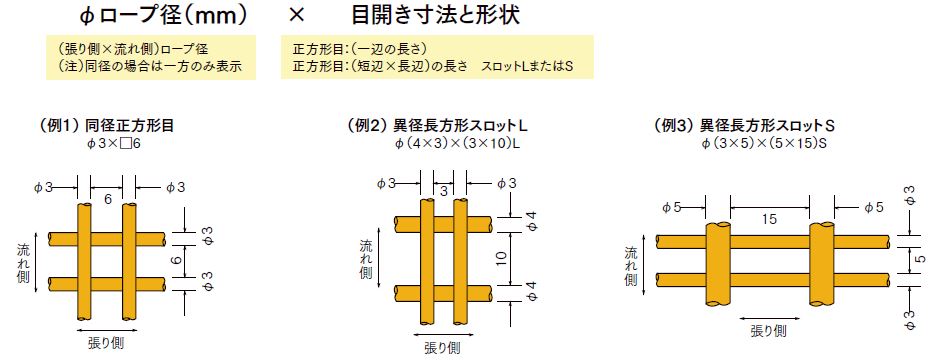

1.網目の表示

2.スクリーンURのサイズの表示

2.スクリーンURのサイズの表示

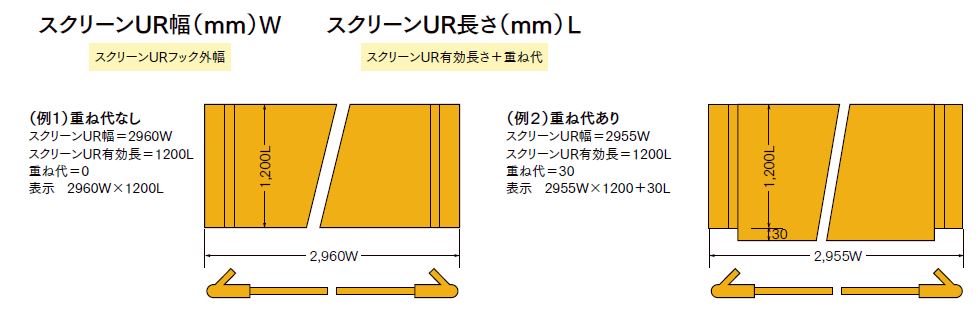

3.スクリーンUR 幅(W)の標準サイズ<br /><br />スクリーンUR幅(W)は、機械の内幅寸法に合わせ下表の通り設計しています。
<div class="profileGoverover" style="text-align: right;">
<table class="profileGovertable" style="table-layout: fixed; width: 1080px;"><colgroup><col width="8%" /><col width="8%" /><col width="8%" /><col width="6%" /><col width="6%" /><col width="6%" /><col width="6%" /><col width="6%" /><col width="6%" /><col width="6%" /><col width="6%" /><col width="28%" /></colgroup>
<thead>
<tr style="height: 17px;">
<th class="thead" style="height: 17px; width: 804px; text-align: center;" colspan="3" rowspan="2"><span style="font-size: 8pt;"><strong>項目</strong></span></th>
<th class="thead" style="height: 17px; width: 1696px;" colspan="8"><span style="font-size: 8pt;"><strong>幅呼称</strong><span style="font-size: 6pt;">(単位:mm)</span></span></th>
<th class="thead" style="height: 17px; width: 212px;" rowspan="2"><span style="font-size: 8pt;"><strong>該当するふるい機<br />メーカー</strong></span></th>
</tr>
<tr style="height: 17px;">
<th class="thead" style="height: 17px; width: 212px;"><span style="font-size: 8pt;"><strong>3</strong></span></th>
<th class="thead" style="height: 17px; width: 212px;"><span style="font-size: 8pt;"><strong>4</strong></span></th>
<th class="thead" style="height: 17px; width: 212px;"><span style="font-size: 8pt;"><strong>5</strong></span></th>
<th class="thead" style="height: 17px; width: 212px;"><span style="font-size: 8pt;"><strong>6</strong></span></th>
<th class="thead" style="height: 17px; width: 145.609px;"><span style="font-size: 8pt;"><strong>7</strong></span></th>
<th class="thead" style="height: 17px; width: 278.391px;"><span style="font-size: 8pt;"><strong>8</strong></span></th>
<th class="thead" style="height: 17px; width: 212px;"><span style="font-size: 8pt;"><strong>9</strong></span></th>
<th class="thead" style="height: 17px; width: 212px;"><span style="font-size: 8pt;"><strong>10</strong></span></th>
</tr>
</thead>
<tbody>
<tr style="height: 10px;">
<td style="border-bottom: 1px solid #c9c9c9; padding: 10px; background: #f6f6f6; border-spacing: 0px; height: 30px; width: 269px; text-align: center;" rowspan="3"><span style="font-size: 8pt;"><strong>メートル<br />寸法<br />機械</strong></span><span style="font-size: 8pt;"><strong><br /></strong></span></td>
<td style="border-bottom: 1px solid #c9c9c9; padding: 10px; background: #ffffff; border-spacing: 0px; height: 10px; width: 535px; text-align: center;" colspan="2"><span style="font-size: 8pt;">ふるい機内幅</span>  </td>
<td style="border-bottom: 1px solid #c9c9c9; padding: 10px; background: #ffffff; border-spacing: 0px; height: 10px; width: 212px; text-align: center;"><span style="font-size: 8pt;">900</span></td>
<td style="border-bottom: 1px solid #c9c9c9; padding: 10px; background: #ffffff; border-spacing: 0px; height: 10px; width: 212px; text-align: center;"><span style="font-size: 8pt;">1200</span></td>
<td style="border-bottom: 1px solid #c9c9c9; padding: 10px; background: #ffffff; border-spacing: 0px; height: 10px; width: 212px; text-align: center;"><span style="font-size: 8pt;">1500</span></td>
<td style="border-bottom: 1px solid #c9c9c9; padding: 10px; background: #ffffff; border-spacing: 0px; height: 10px; width: 212px; text-align: center;"><span style="font-size: 8pt;">1800</span></td>
<td style="border-bottom: 1px solid #c9c9c9; padding: 10px; background: #ffffff; border-spacing: 0px; height: 10px; width: 145.609px; text-align: center;"><span style="font-size: 8pt;">2100</span></td>
<td style="border-bottom: 1px solid #c9c9c9; padding: 10px; background: #ffffff; border-spacing: 0px; height: 10px; width: 278.391px; text-align: center;"><span style="font-size: 8pt;">2400</span></td>
<td style="border-bottom: 1px solid #c9c9c9; padding: 10px; background: #ffffff; border-spacing: 0px; height: 10px; width: 212px; text-align: center;"><span style="font-size: 8pt;">2700</span></td>
<td style="border-bottom: 1px solid #c9c9c9; padding: 10px; background: #ffffff; border-spacing: 0px; height: 10px; width: 212px; text-align: center;"><span style="font-size: 8pt;">3000</span></td>
<td style="border-bottom: 1px solid #c9c9c9; padding: 10px; background: #ffffff; border-spacing: 0px; height: 10px; width: 212px; text-align: center;" rowspan="3"><span style="font-size: 8pt;">ラサ工業㈱・近畿工業㈱</span><br /><span style="font-size: 8pt;">古河産業システムズ㈱</span><br /><span style="font-size: 8pt;">㈱幸袋テクノ・太平洋機工㈱</span></td>
</tr>
<tr style="height: 10px;">
<td style="border-bottom: 1px solid #c9c9c9; padding: 10px; background: #ffffff; border-spacing: 0px; height: 10px; width: 169px; text-align: center;" rowspan="2"><span style="font-size: 8pt;">スクリーンUR幅(W)</span></td>
<td style="border-bottom: 1px solid #c9c9c9; padding: 10px; background: #ffffff; border-spacing: 0px; height: 10px; width: 366px; text-align: center;"><span style="font-size: 8pt;"> フックL

3.スクリーンUR 幅(W)の標準サイズ

スクリーンUR幅(W)は、機械の内幅寸法に合わせ下表の通り設計しています。

項目 幅呼称(単位:mm) 該当するふるい機
メーカー
3 4 5 6 7 8 9 10
メートル
寸法
機械

ふるい機内幅   900 1200 1500 1800 2100 2400 2700 3000 ラサ工業㈱・近畿工業㈱
古河産業システムズ㈱
㈱幸袋テクノ・太平洋機工㈱
スクリーンUR幅(W)  フックL,LL 860 1160 1460 1760 2060 2360 2660 2960
フックM 855
1155 1455 1755 2055 2355 2655 2955
インチ
寸法
機械
ふるい機内幅   921 1226 1530 1835 2140 2445 2750 3055 ㈱アーステクニカ
スクリーンUR幅(W)  フックL,LL  880 1185 1490 1795 2100 2405 2710 3015
フックM 875 1180 1485 1790 2095 2400 2705 3010
(注)上記標準サイズ以外のスクリーンUR幅(W)も自由に制作できますので、ご相談ください。

4.スクリーンURの長さ(L)

(1)クランピングバーと同一長さにしてください。

(2) スクリーンURの最大長さ

スクリーンUR有効長さ(L) 最大1525mm
スクリーンUR有効長さ(L)+重ね代(K) 最大1555=1525+30mm
(3)スクリーンUR長さは、上記最大長さ以内で自由に製作できますのでご相談ください。

(4)スクリーンUR長さの組み合わせ
①ふるい機長さを等分に分割する場合。
②シュート下部を短くし、残りの部分を等分割にする場合 (シュート下部は600または610mmがよく用いられます)
③各スクリーンUR長さが別々の場合。

(5)ふるい機長さと “よく用いられるスクリーンUR長さ”との組み合わせ

ふるい機長さ スクリーンUR有効長さ (mm)
呼称
(単位 : 枚)
寸法 600(610) 1000 1050 1200(1220) 1350(1372) 1400(1422) 1500(1525)
10 3000  1     2
  3
            2
12 3600
(3660)
      3
1 3
14 4200
(4270)
1     3
    4
          3
16 4800
(4880)
      4
18 5400
(5490)
      4
        4
20 6000
(6100)
  6
      5
            4
(注)スクリーンUR有効長さおよびふるい機長さの実寸法欄に示す()内数字は、 インチタイプのふるい機の寸法です。

用途

合材やコンクリート骨材などのふるいに最適です。
