Stress-strain Curve
The elongation of a timing belt is an important indicator of its durability. This elongation can be analyzed using a 'Stress-Strain Curve' graph. This graph illustrates the rate of elongation of the timing belt under conditions where the belt's teeth and the pulley's teeth are engaged and a load is applied.

Stress-strain Curve

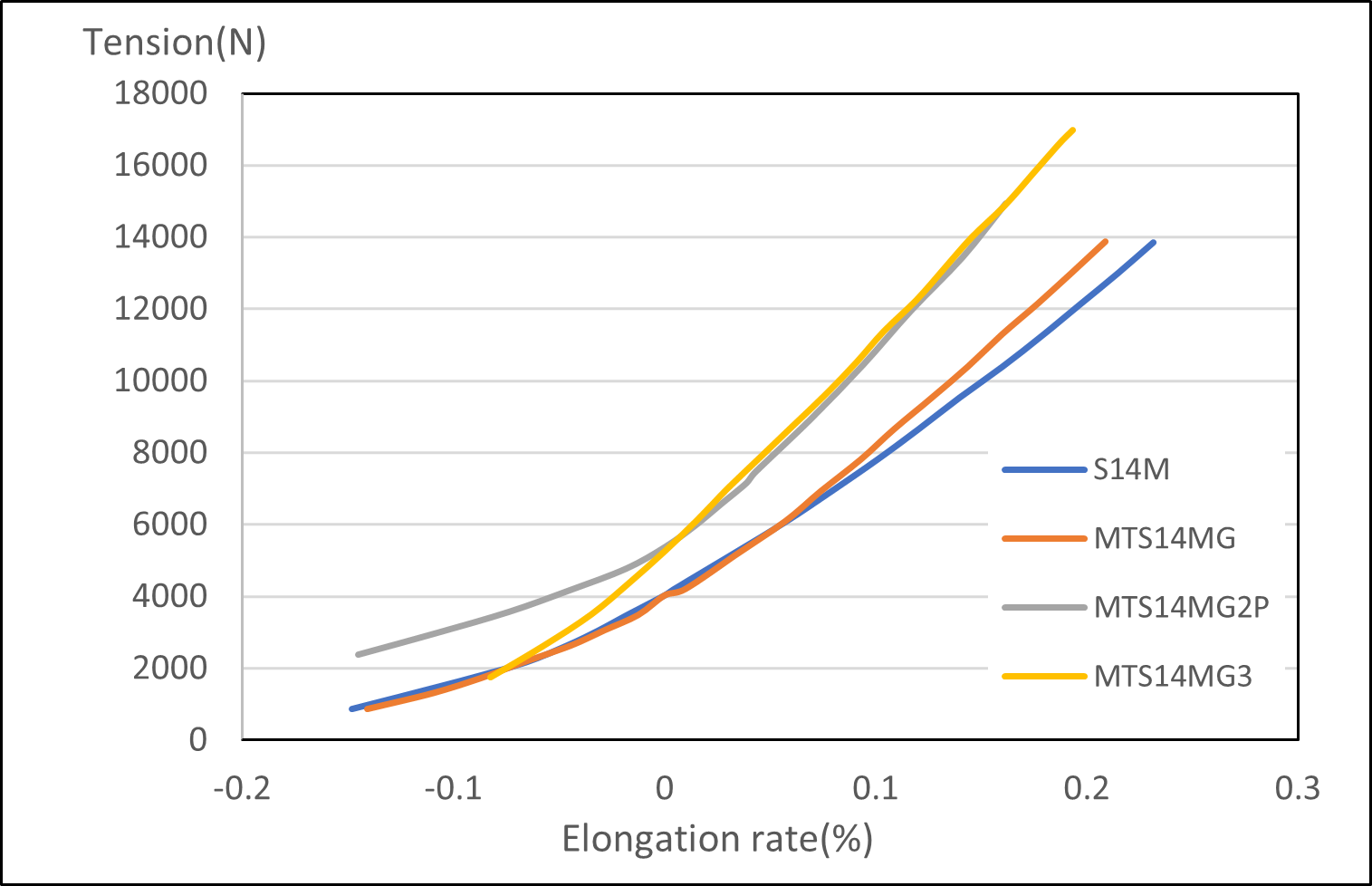

14㎜ Pitch・Belt width 120㎜
S teeth

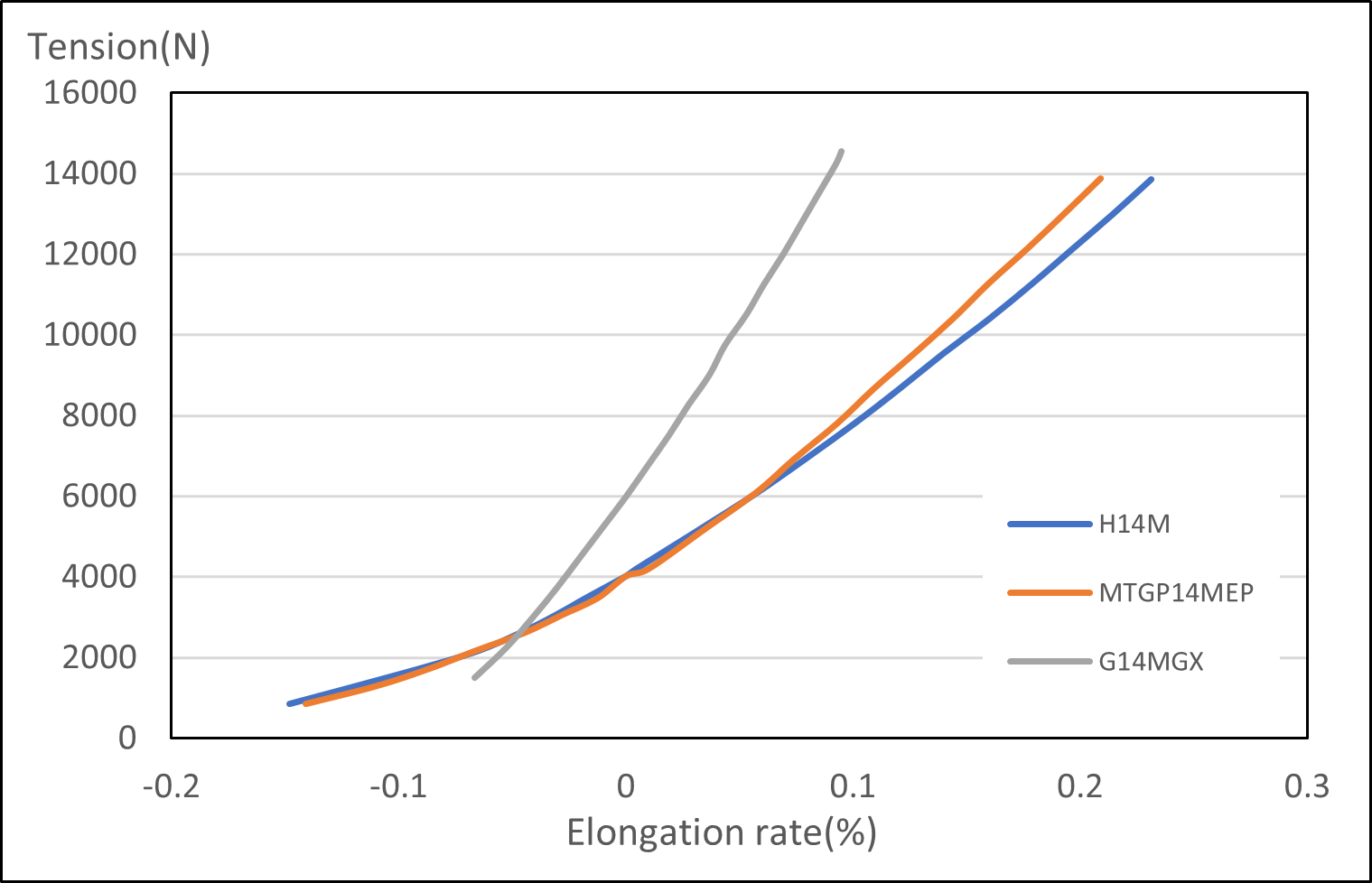

H, GP, G teeth

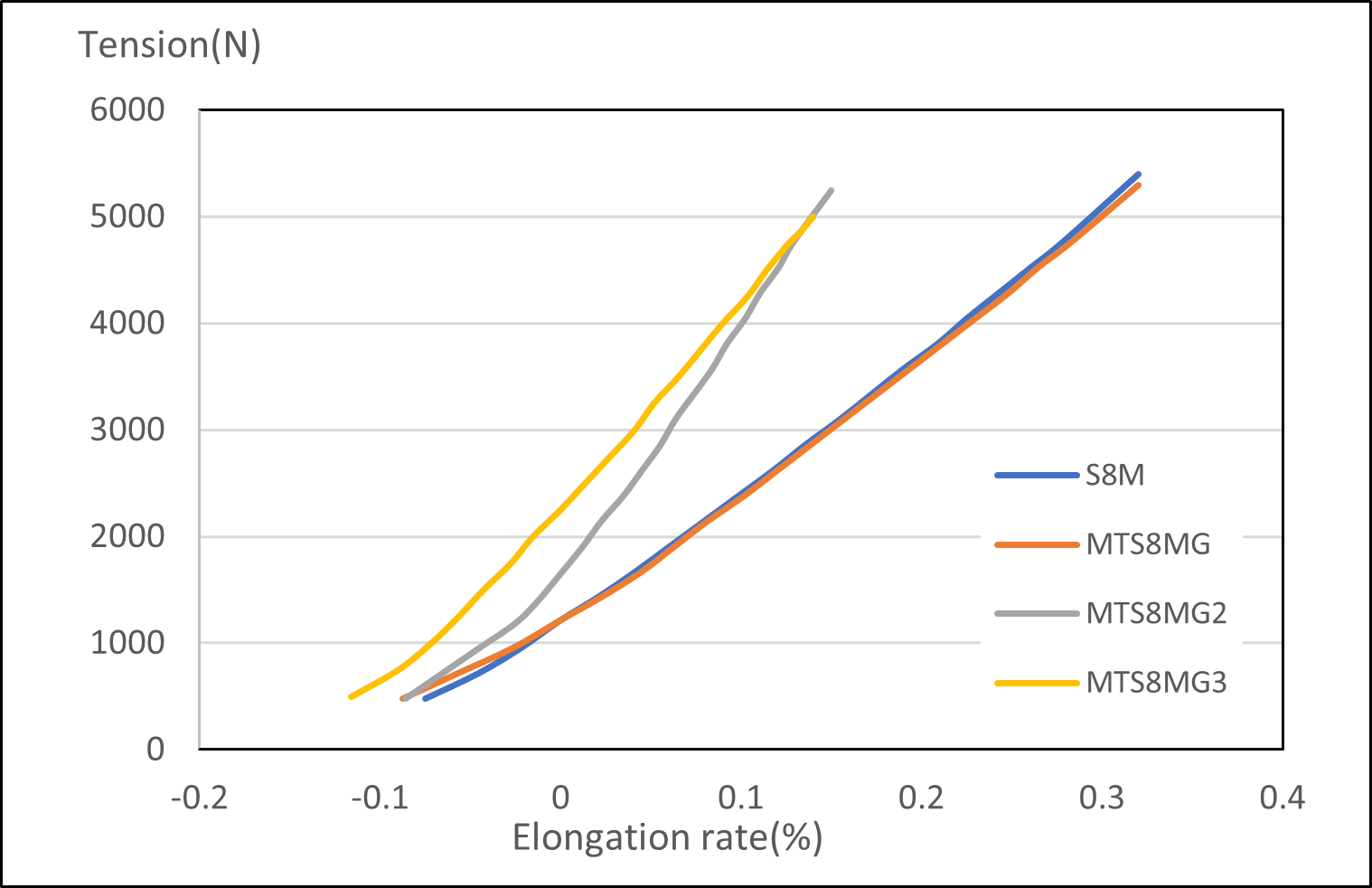

8㎜ Pitch・Belt width 60㎜
S teeth

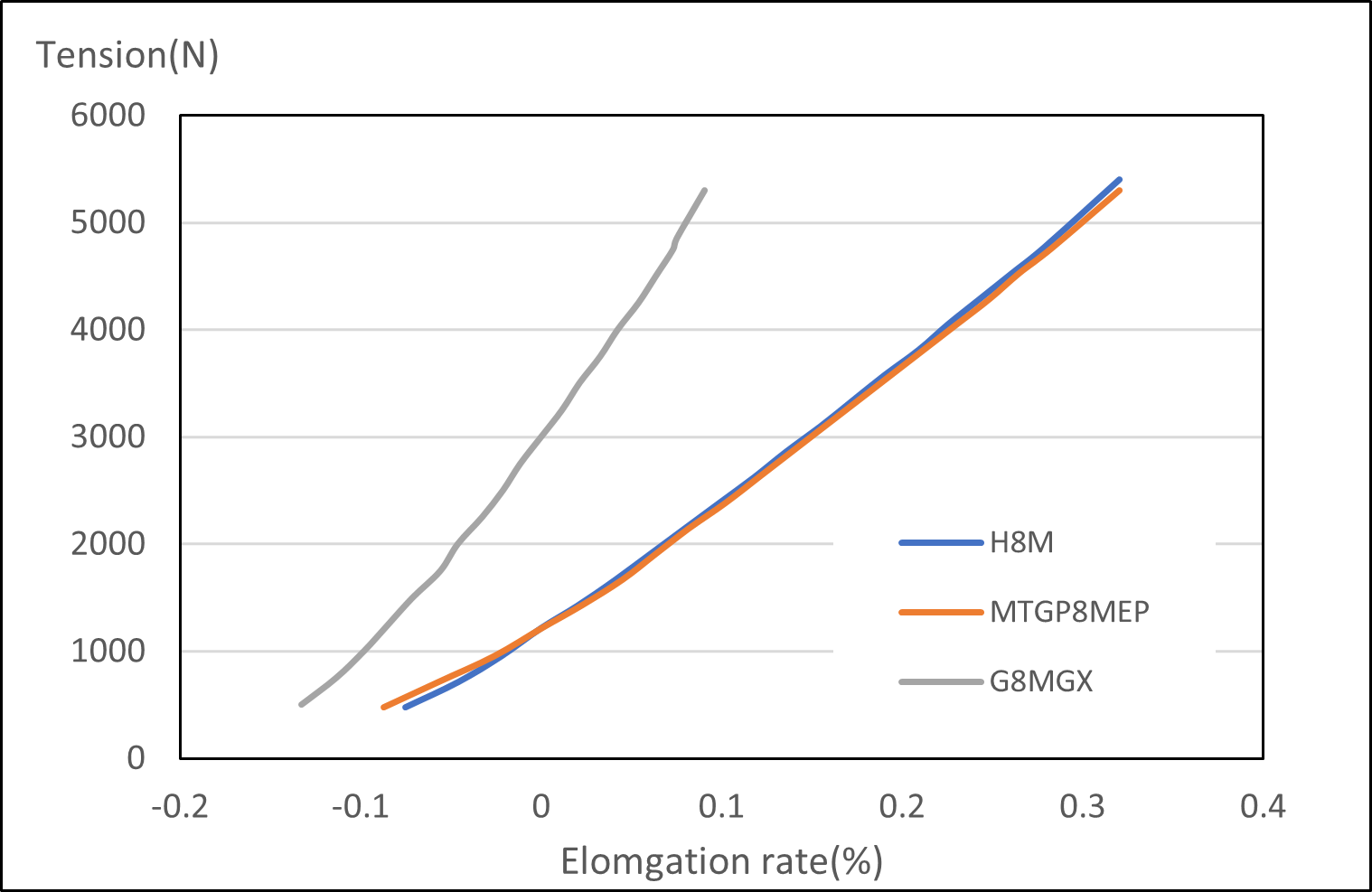

H, GP, G teeth

5㎜ Pitch・Belt width 10㎜

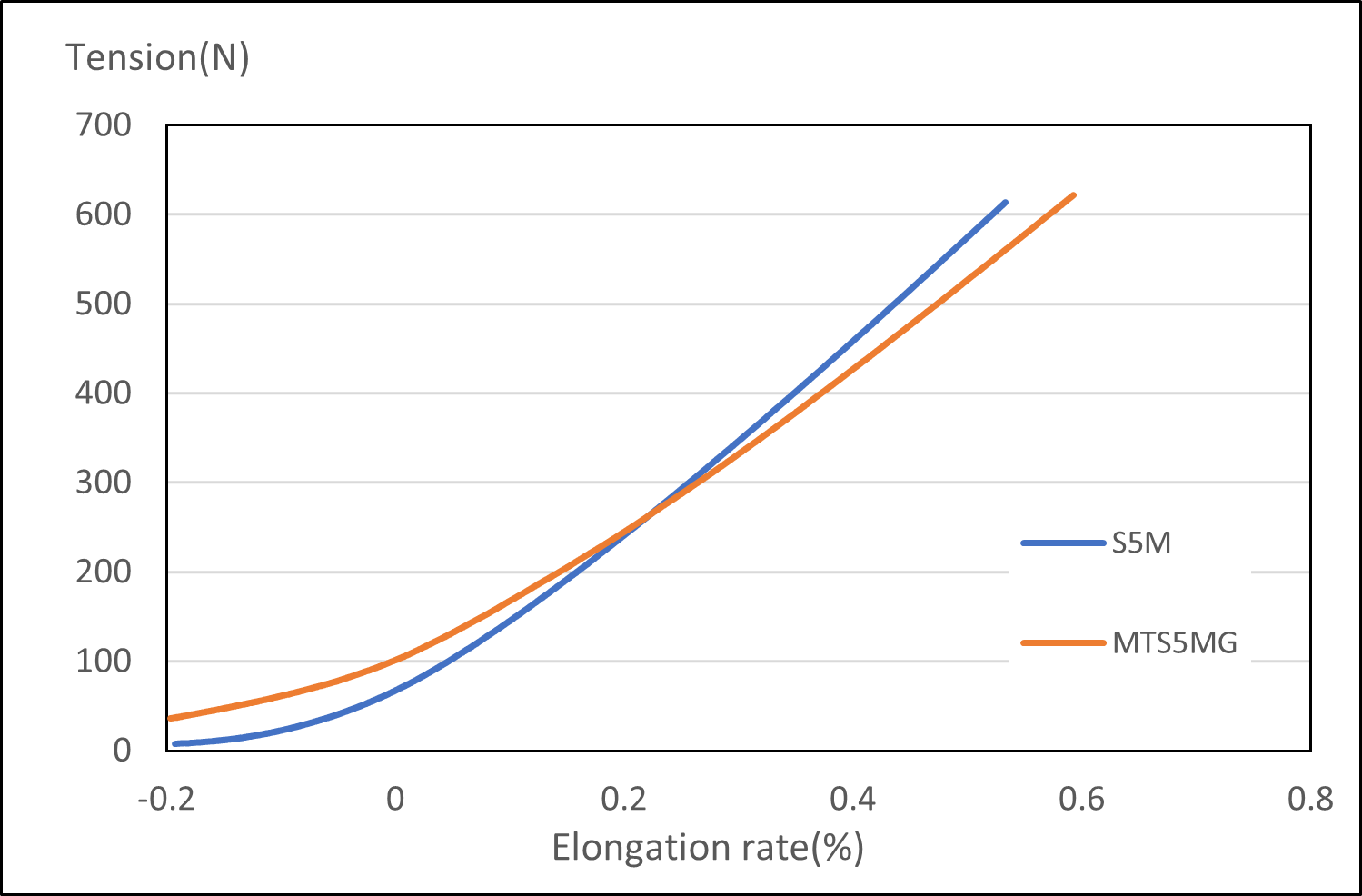

S teeth

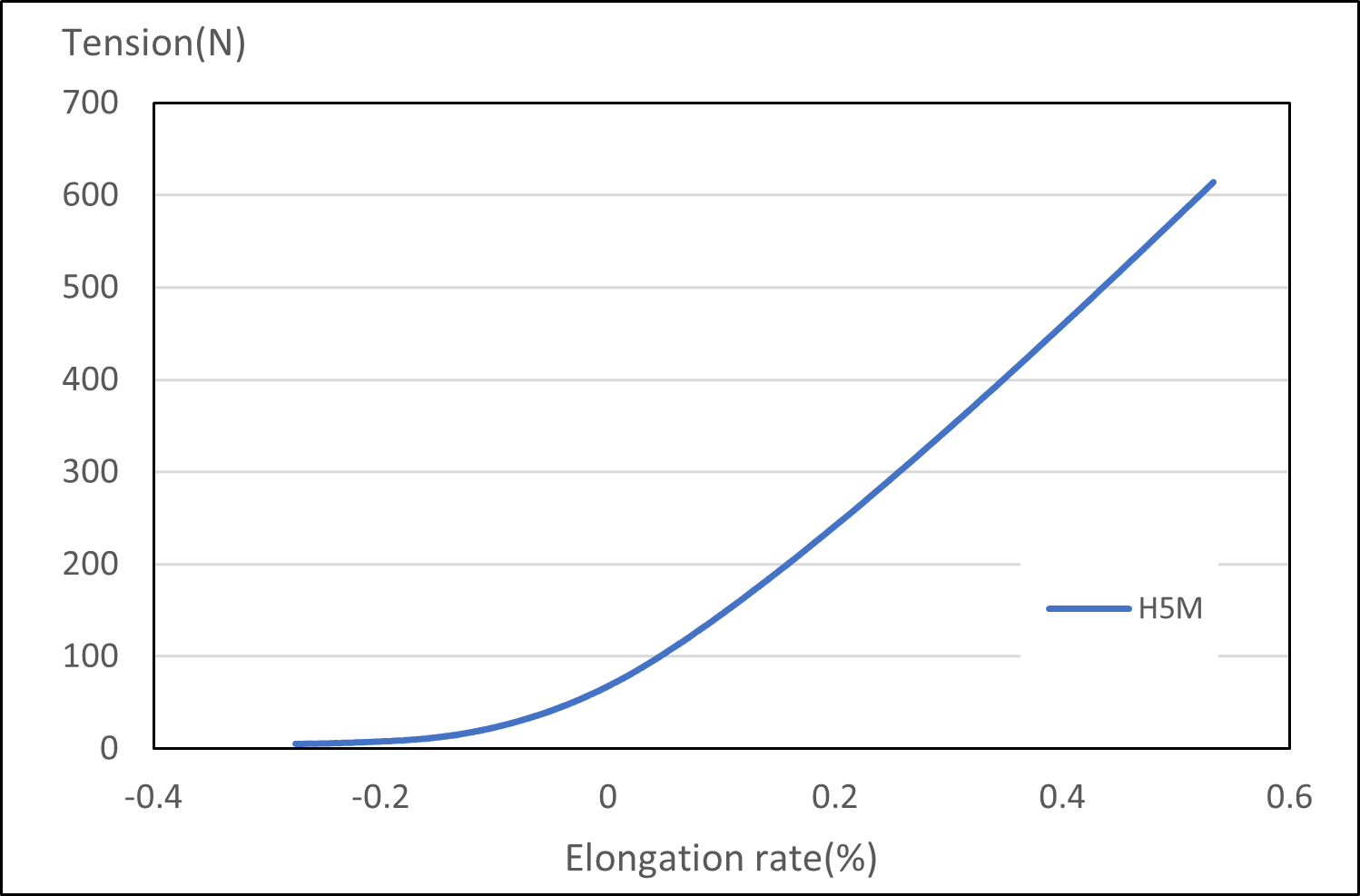

H teeth

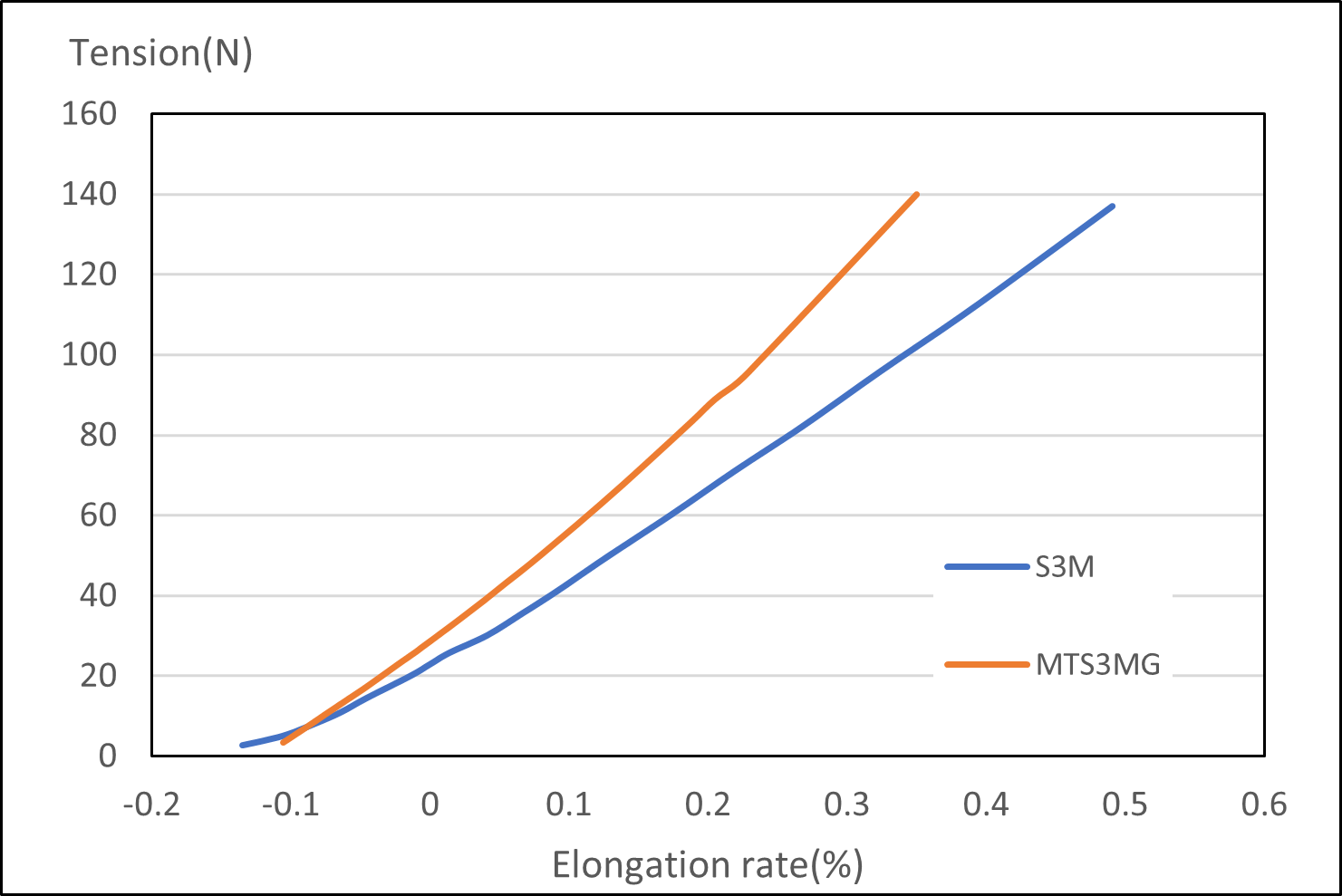

3㎜ Pitch・Belt width 6㎜
S teeth

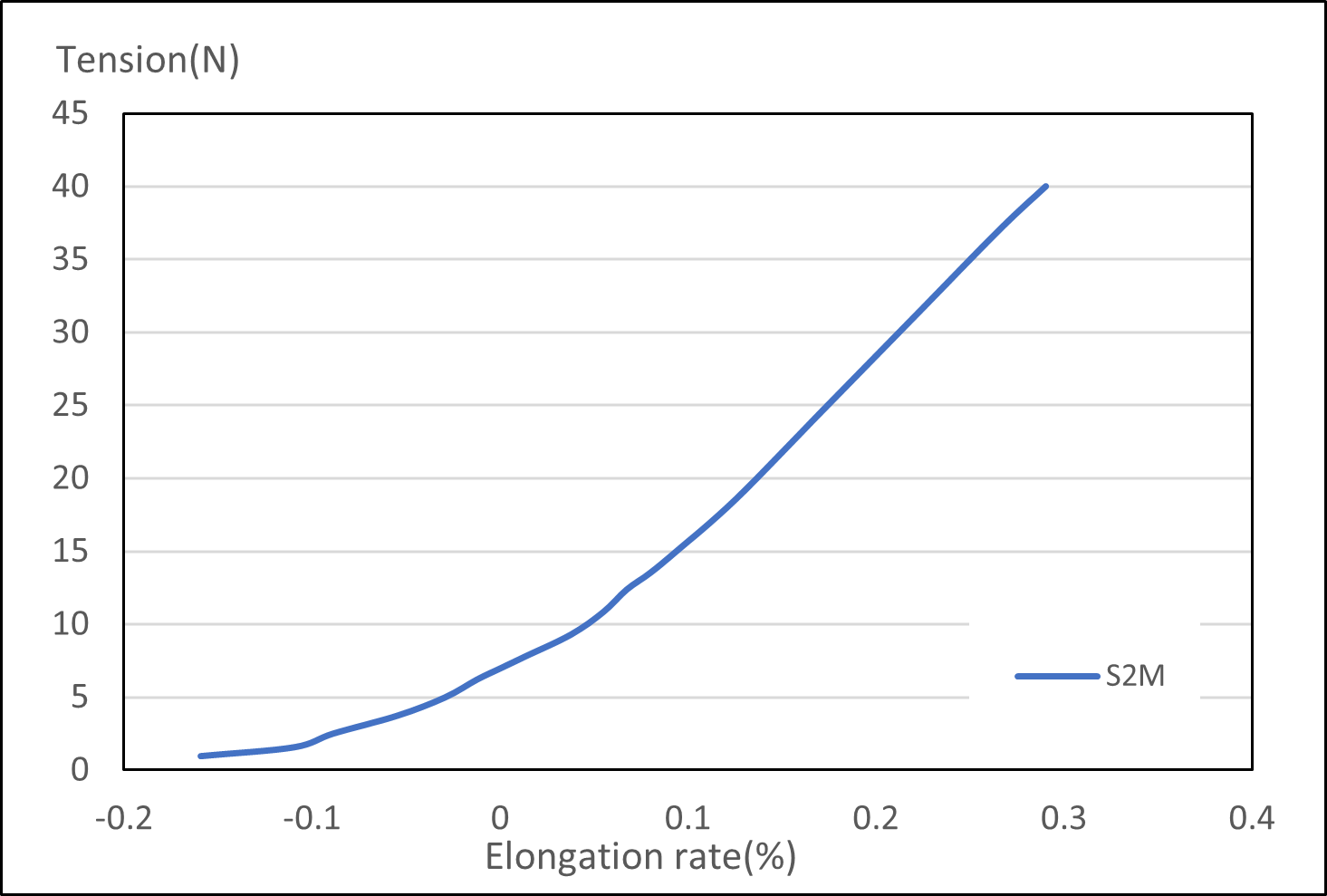

2㎜ Pitch・Belt width 4㎜
S teeth
