Ag Conductive Pastes
Our Ag conductive pastes provide excellent adhesion and reliability not only on alumina (Al₂O₃) and glass substrates, but also on aluminum nitride (AlN) substrates, which are generally considered difficult to bond to.
They supports various application methods such as screen printing, screen offset printing and dip coating, and provides paste optimized for each method.
Customization is also available to meet specific application requirements. Please feel free to contact us for further information.
Features
- Wide Firing Temperature Range
Compatible with firing temperatures ranging from 600°C to 900°C, enabling use under a wide variety of process conditions.
-
Compliance with Environmental Regulations
Lead-free formulations compliant with RoHS, SVHC, and REACH requirements, providing excellent environmental performance. -
Customizable Viscosity
Viscosity can be tailored to application requirements, optimizing printability and process performance. -
Lineup Available for High-temperature Applications
Products for high-temperature conditions such as ceramic heater heating elements are also available. -
Excellent Adhesion Reliability
Maintains adhesion strength of 2 kgf/2 mm2 even after 1000 cycles of thermal cycling test .

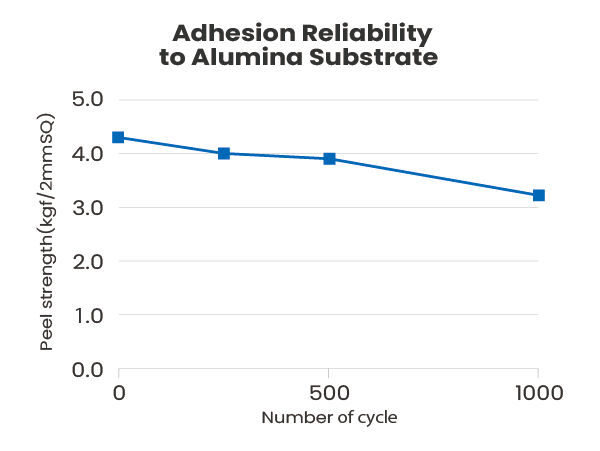

・After silver paste plating
・Thermal cycle test : -45℃⇔125℃
・Dstruction mode : in-solder destruction / substrate gouging

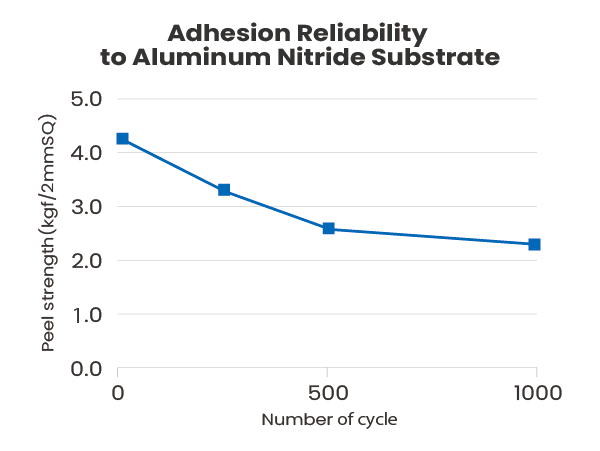

・After silver paste plating
・Thermal cycle test : -45℃⇔125℃
・Fracture mode : interfacial detachment
Specification
| Type | Viscosity (25rpm) (Pa・s) |
Coverage (cm²/g) |
Substrates | Recommended firing conditions | Remarks |
|---|---|---|---|---|---|
| HS301 | 100～200 | 230 | Al₂O₃, Glass | ≧600℃, 10min | - |
| HS301CS | 100～200 | 240 | Al₂O₃ | ≧850℃, 10min | Migration-resistant |
| HS201 | 50～150 | 190 | AlN | ≧850℃, 10min | - |
| HS002CB | 150～250 | 190 | - | ≧850℃, 10min | Migration-resistant |
| HS107D5 | 2～10 | 250 | Al₂O₃ | ≧850℃, 10min | For dipping |
| HS101T2 | 10～30 | 250 | Al₂O₃ | ≧850℃, 10min | For screen and pad printing, Migration-resistant |
| High-resistance type | 100～300 | - | Al₂O₃, AlN | 850℃, 10min | For forming heating elements in heaters, Adjustable from 3mΩ/□ to 40mΩ/□ |
Application
-
Wiring Formation for LED Package Substrates (Alumina (Al₂O₃))
-
Wiring Formation for Passive Components (Aluminum Nitride (AlN))
-
Ceramic Heaters
Caution
-
The listed data represents typical values and does not guarantee performance or quality.
-
Product specifications are subject to change without notice.
