Easy belt jointing by putting a pin in.
□The belt can be easily jointed and attached to the conveyor by simply threading a pin.
□No exposed metal fittings prevent damage to the material being conveyed or to the conveyor.

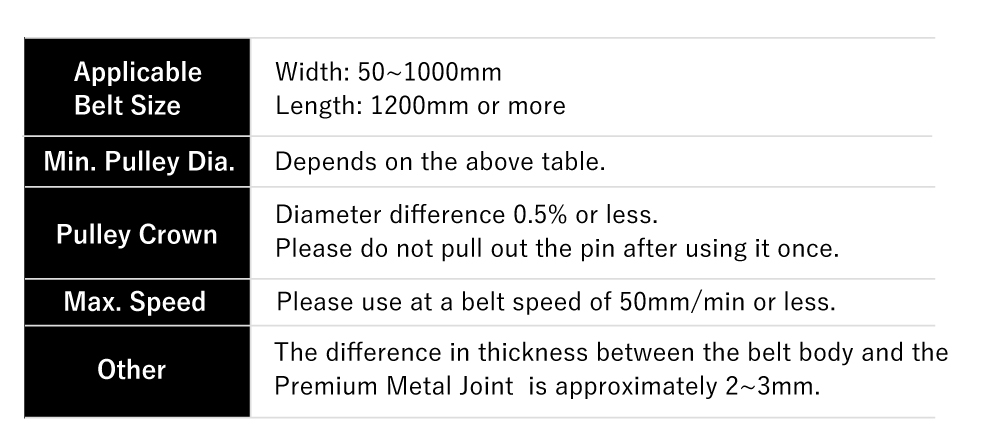

The thickness difference between the belt and the Premium Metal Joint is approximately 2 to 3 mm.

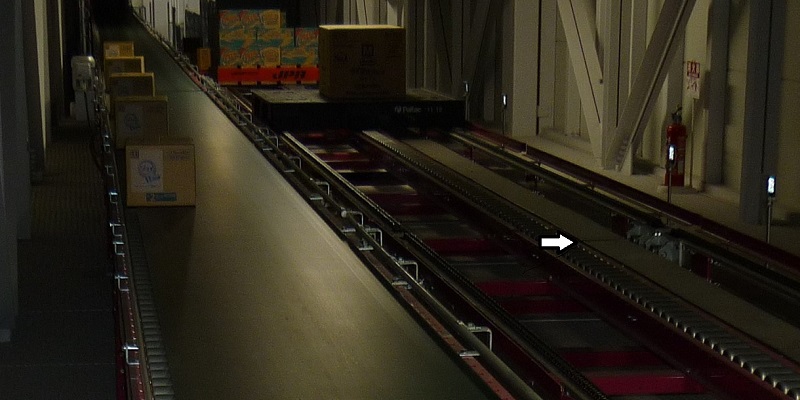

Ideal for conveyor lines for cardboard and plastic cases at distribution terminals, etc.

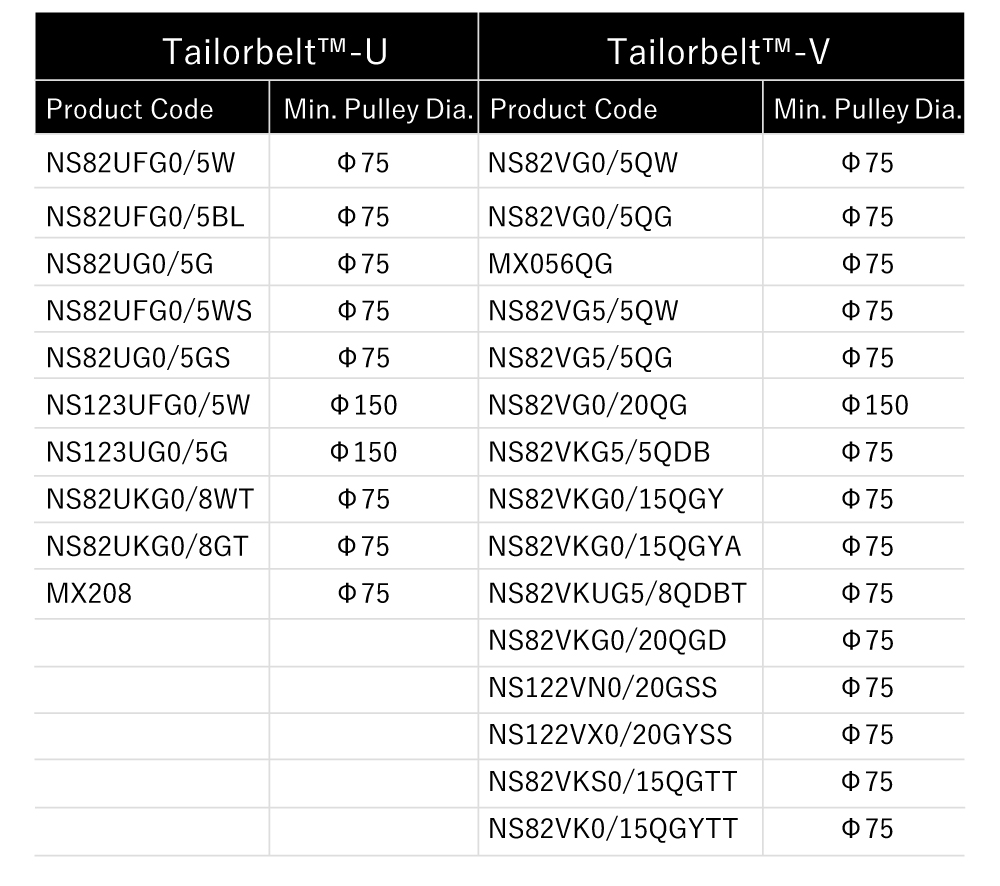

Applicable belt, Minimum pulley diameter (mm)

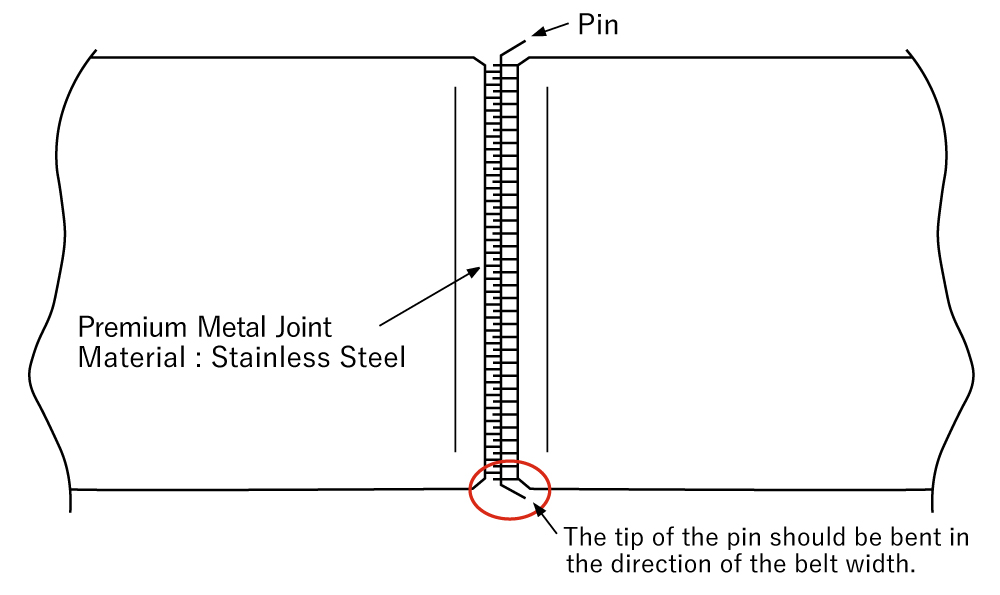

〇Standard pin is a nylon-coated pin. When attaching a belt to a conveyor, both ends of the pins should be bent in the direction of the belt width to prevent disconnection.
○To prevent damage to the material being conveyed or to the conveyor frame, a pin length similar to the belt width is also available. Please tell us when you order the belt.
