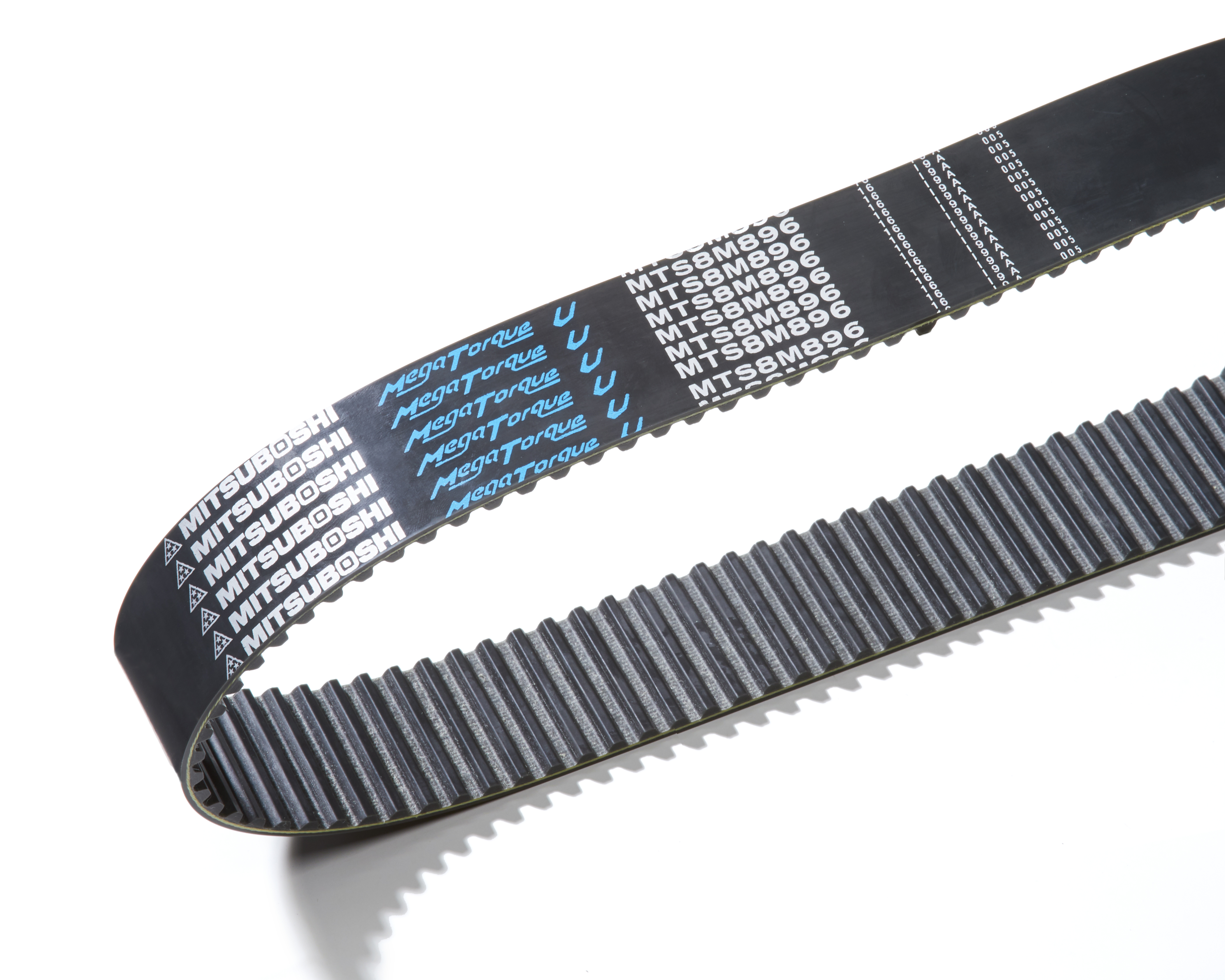

MEGA TORQUE G & U series

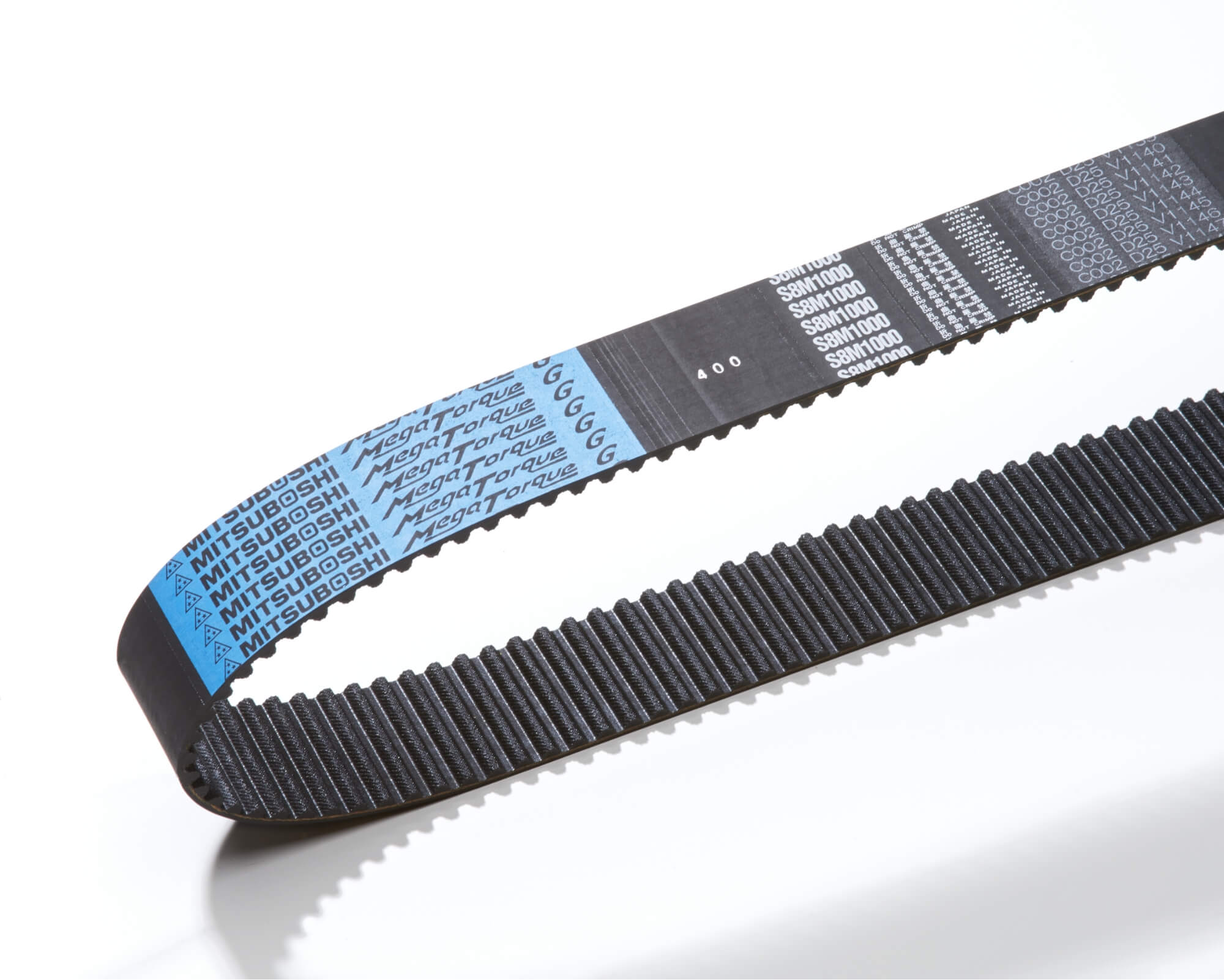

MEGA TORQUE (G & U series) has excellent transmission capacity and jumping torque. It is suitable for high load transmission.
Characteristics

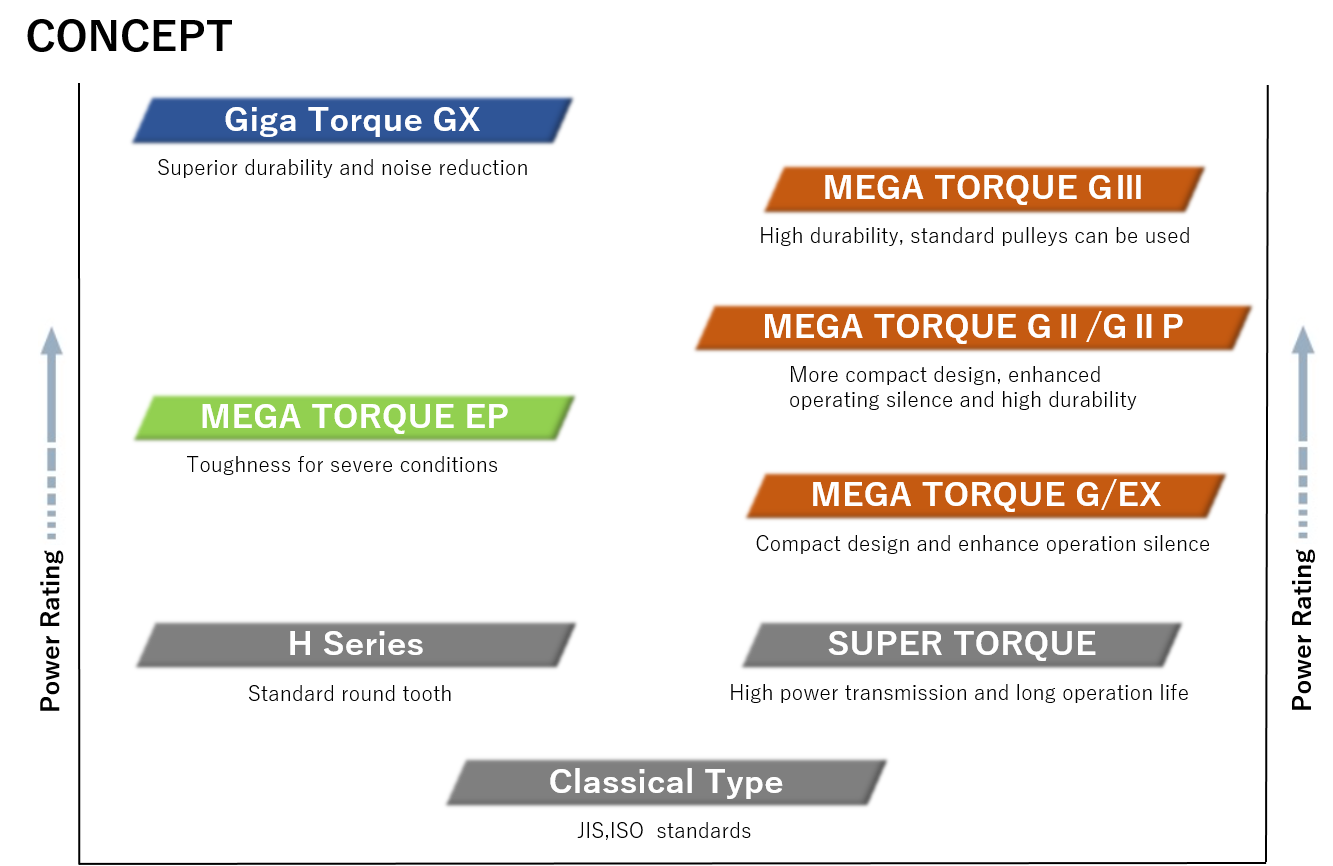

Product System Diagram

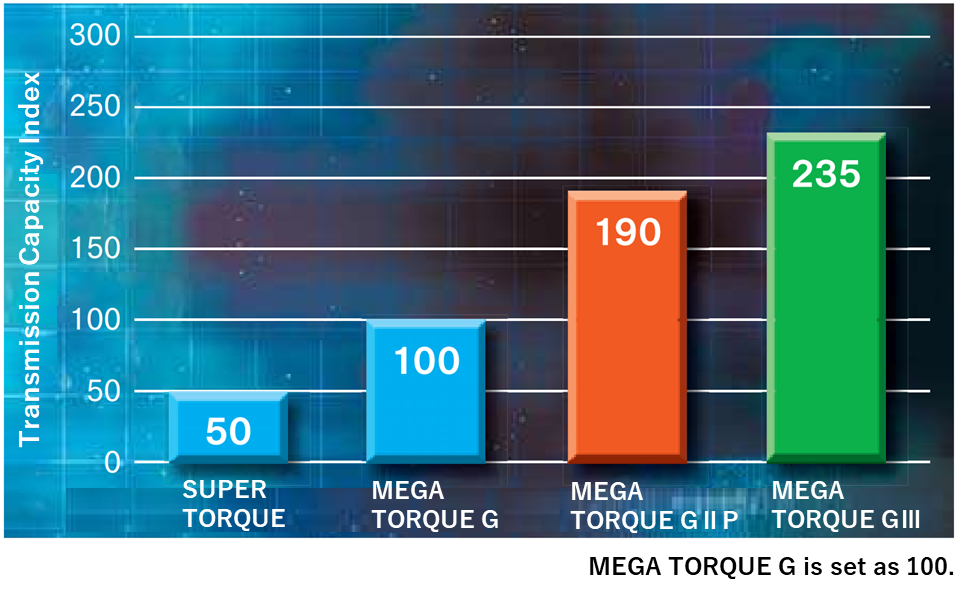

High transmission capacity

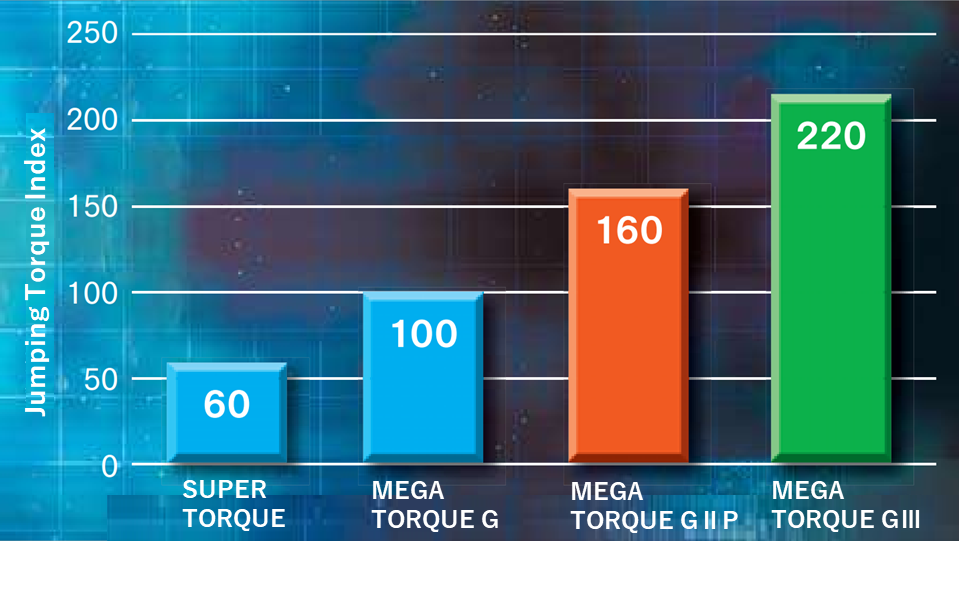

Jumping torque characteristics

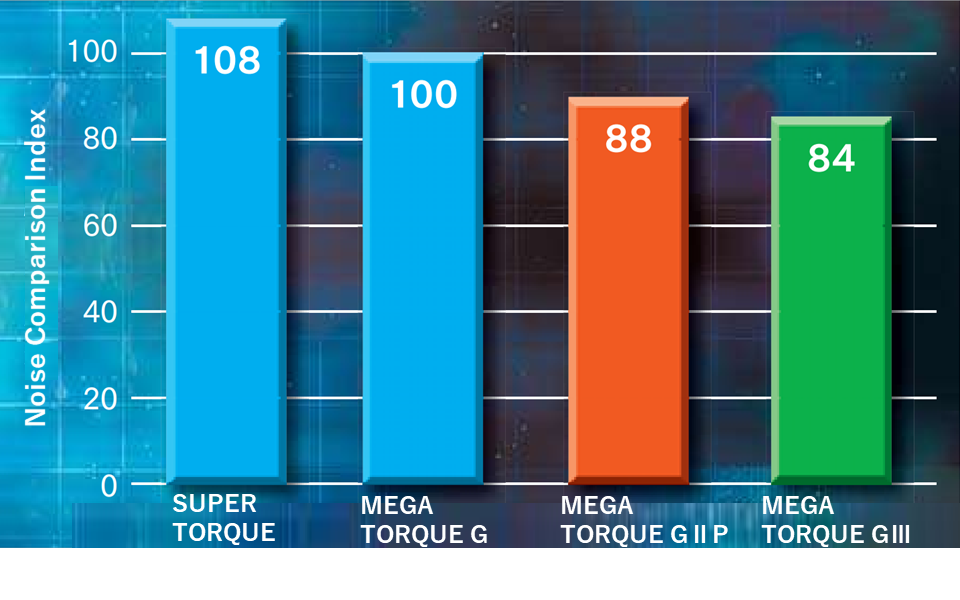

Low noise
Specification Lineup
MEGA TORQUE G has excellent transmission capacity compared to the SUPER TORQUE G. Therefore, it is possible to narrow the width of belts and pulleys and to make compact designs. In addition, the MTS3M, MTS8M, and MTS14M can use the SUPER TORQUE Timing Pulley as it is.
*Only MTS5M requires a dedicated pulley.
*Only MTS5M requires a dedicated pulley.
The use of carbon cord suppresses belt elongation and enables high load transmission. In addition, by using a special compounded rubber, about 1.5 times the transmission capacity of the MEGA TORQUE G has been achieved. Therefore, the belt width can be designed to be narrow. Abrasion resistant and low-friction fabric is used to improve durability under heavy loads.
The use of carbon cord suppresses belt elongation and enables high load transmission. In addition, by using a special compounded rubber, about 1.9 times the transmission capacity of the MEGA TORQUE G has been achieved. Therefore, the belt width can be designed to be narrow. Abrasion resistant and low-friction fabric is used to improve durability under heavy loads.
MEGA TORQUE GⅢ is the highest grade of STPD* tooth profile belts. By increasing the torque, it is possible to narrow the belt width, enabling a compact design and reducing the weight of the machinery. Additionally, it reduces belt noise, suppresses the mounting tension and minimizies the load on bearings. It can be used with SUPER TORQUE Timing Pulley.
*STPD tooth profile : tooth profile of SUPER TORQUE Timing Belts.
*STPD tooth profile : tooth profile of SUPER TORQUE Timing Belts.

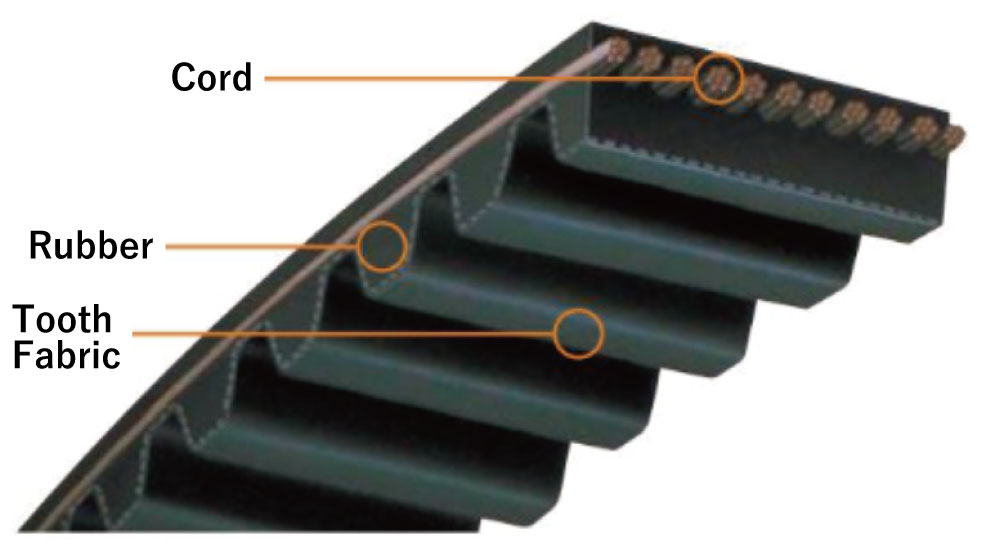

Material Construction
| MEGA TORQUE G | MEGA TORQUE GⅡ |
MEGA TORQUE GⅡP |
MEGA TORQUE GⅢ | |||||
|---|---|---|---|---|---|---|---|---|
| Belt Type | MTS3M | MTS5M | MTS8M | MTS14M | MTS8M | MTS14M | MTS8M | MTS14M |
| Rubber | Chloroprene | High Hardness Synthetic Rubber |
High Hardness Synthetic Rubber |
Super High Hardness Synthetic Rubber |
||||
| Tensile Cord | Glass Fibre | Carbon | Carbon | |||||
| Fabric | Nylon (※Bareback) |
Nylon | Nylon/ Aramid |
Nylon/ Teflon |
Nylon/Teflon | |||
| Pulley Tooth profile |
Standard | Special | Standard | Special | Standard | |||
Tooth Profile Dimension

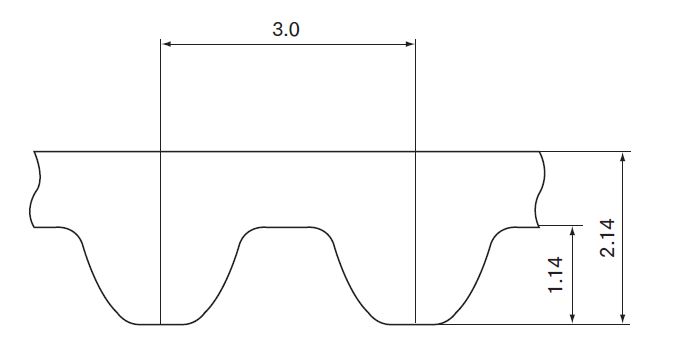

MEGA TORQUE G MTS3M

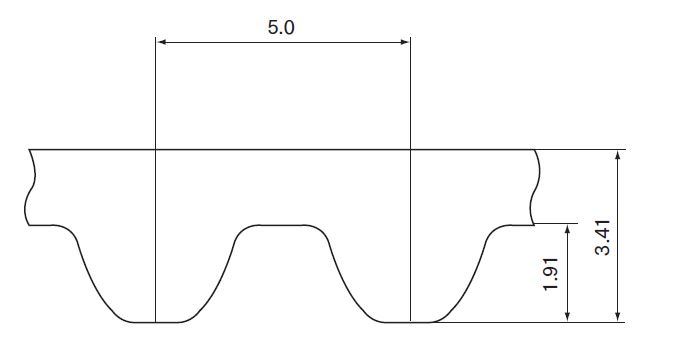

MEGA TORQUE G MTS5M

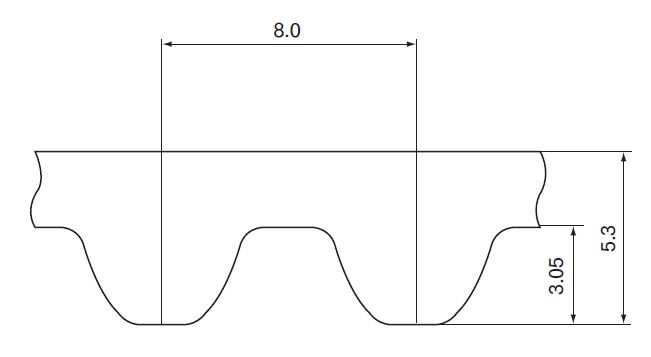

MEGA TORQUE G MTS8M

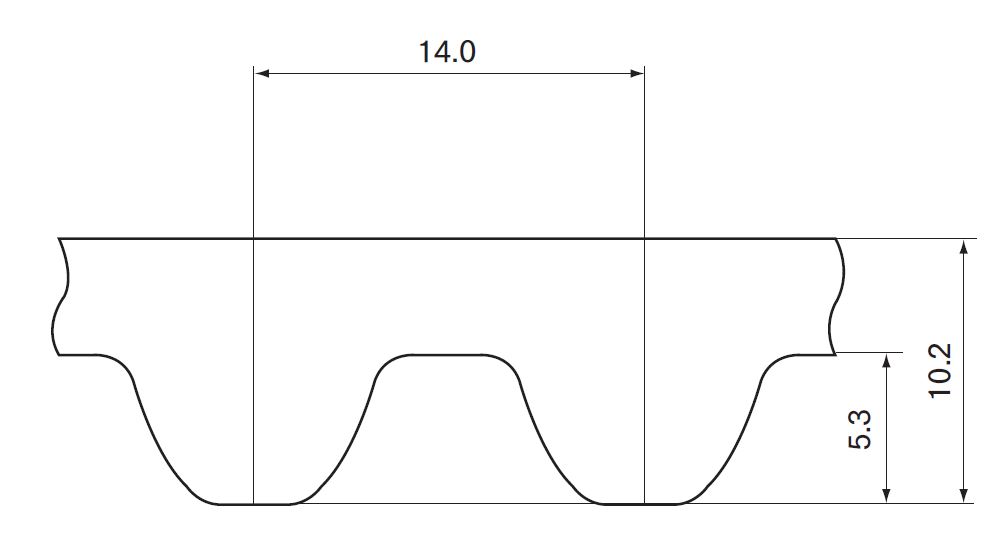

MEGA TORQUE G MTS14M

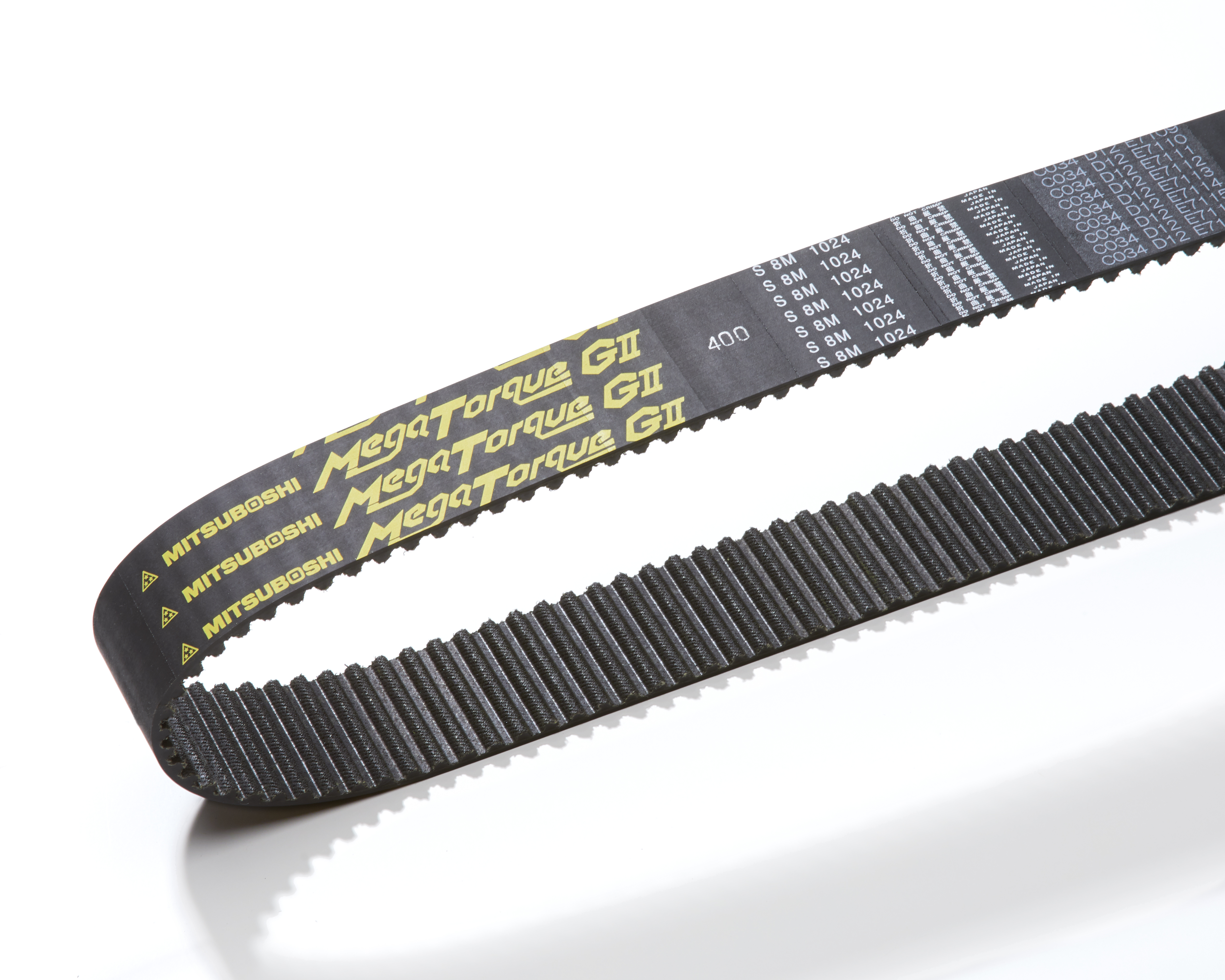

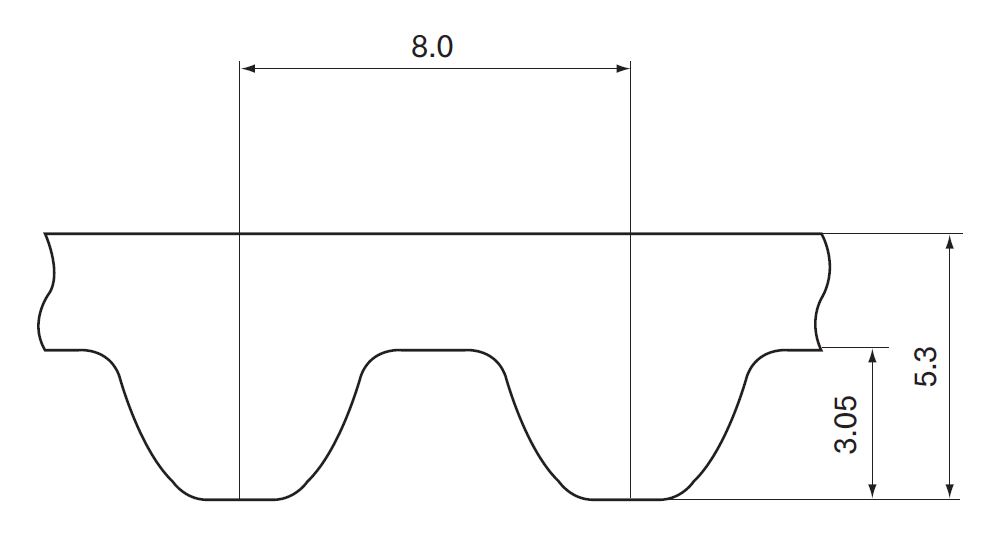

MEGA TORQUE GⅡ MTS8M

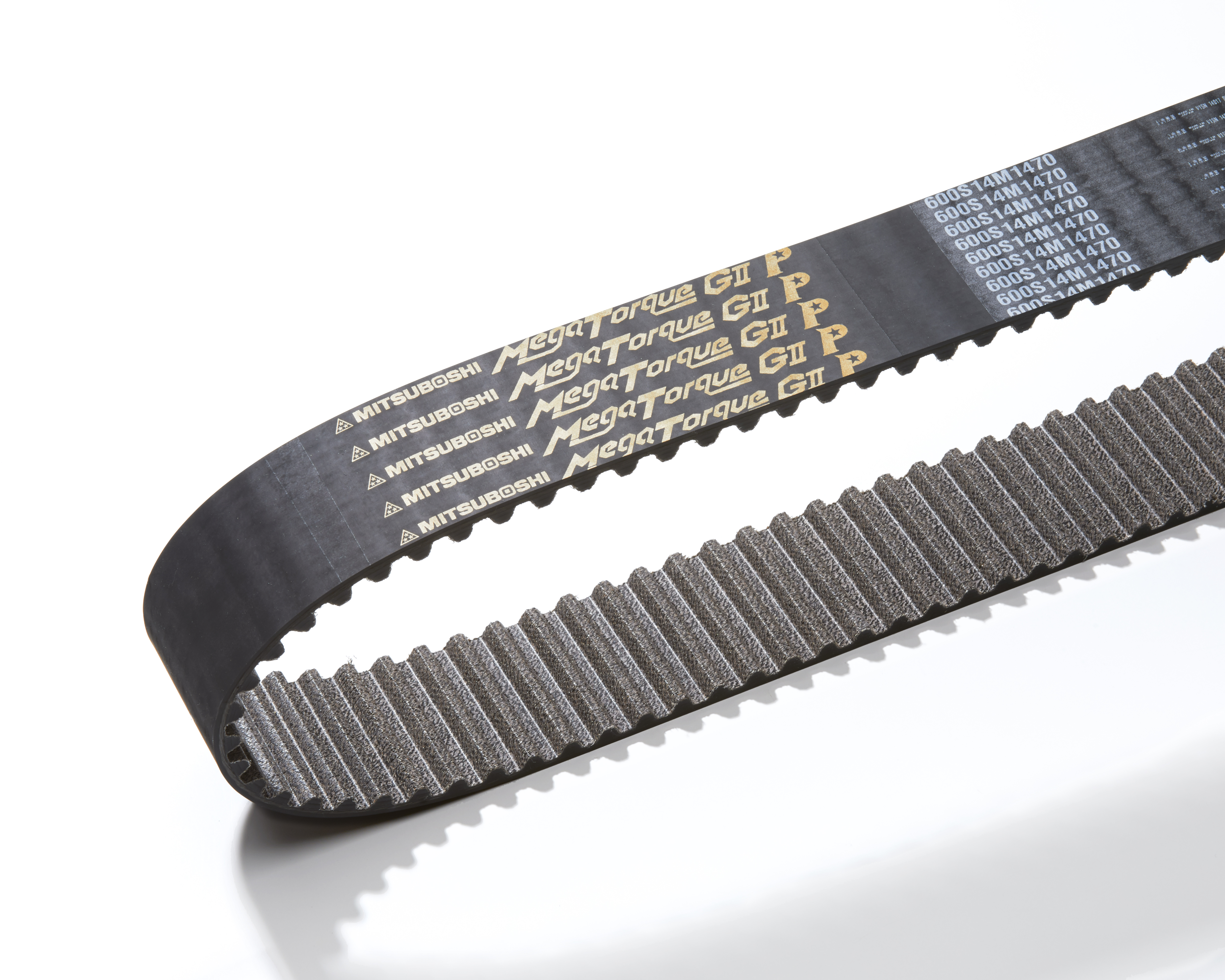

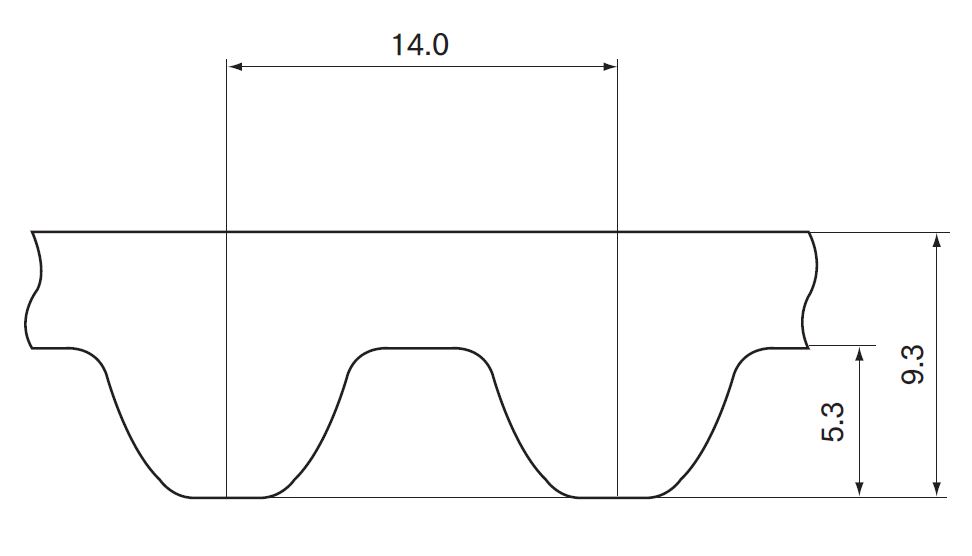

MEGA TORQUE GⅡP MTS14M

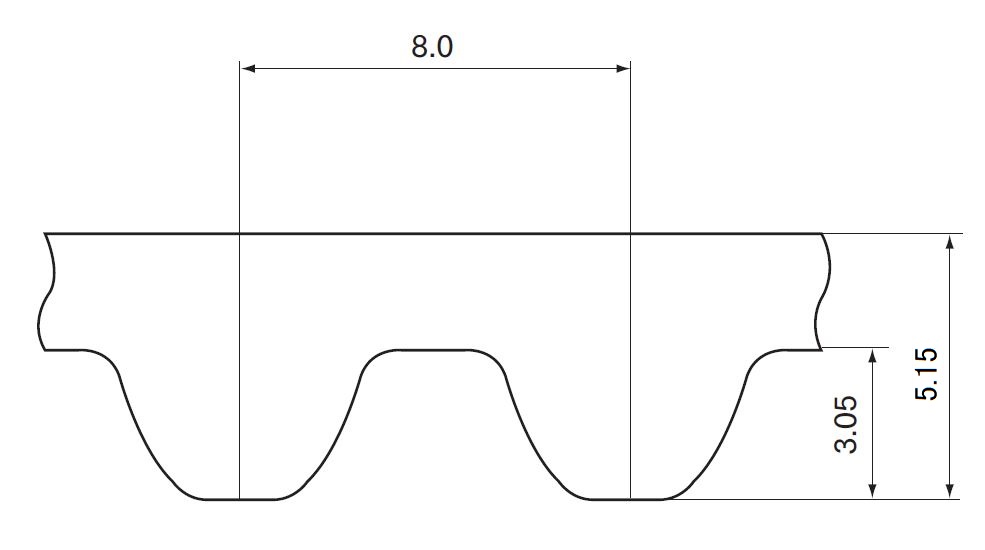

MEGA TORQUE GⅢ MTS8M

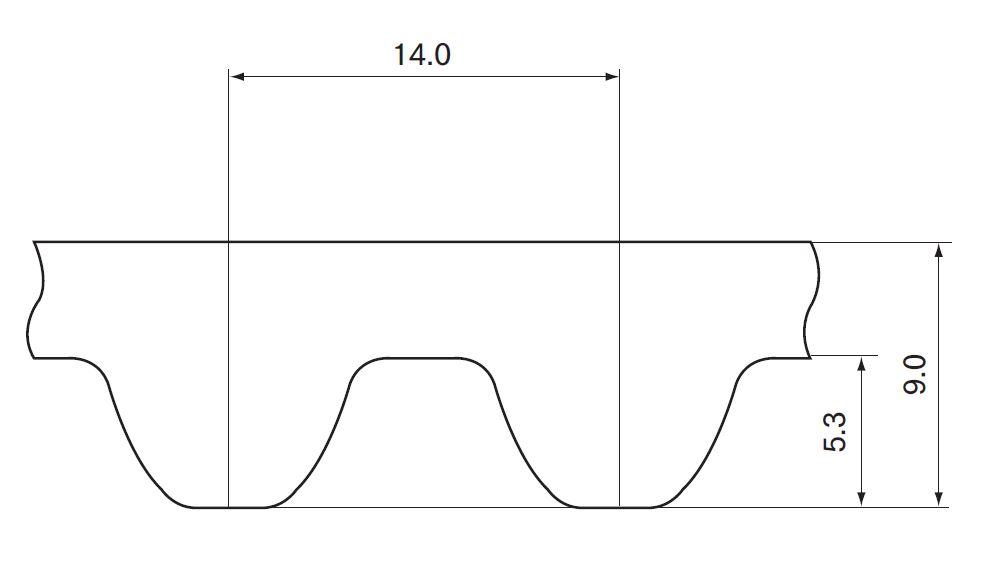

MEGA TORQUE GⅢ MTS14M
Application example
Injection ｍolding ｍachine
Vertical machining center
