Double-sided Timing Belts
Double-sided Timing Belts
Double-sided Timing Belts

Double-sided Timing Belts

The Double-sided Timing Belts have the same performance as Timing Belts and SUPER TORQUE Timing Belts. They have teeth on both sides of the belt and can be used for multi-axis transmission and double-sided drive.

Specification Lineup

Bareback specification
Double-sided Timing Belt G (DS3M,DS5M,DMXL,DXL)
Double-sided Timing Belt G (DS3M
The DS3M, DS5M, DMXL and DXL type of the Doble-sided Timing Belt are bareback(non-rubber) specification with less rubber dust dispersion. It has teeth on the both sides of the belt and its performance is the same as the Timing Belt G and SUPER TORQUE G.
standard specification
Double-sided Timing Belt G (DS8M,DS14M,DL,DH)
Double-sided Timing Belt G (DS8M
The standard specification of the Double-sided Timing Belt G has the same performance as the Timing Belt G and SUPER TORQUE G. It has teeth on both sides of the belt and can be used for multi-axis transmission and double-sided drive.
Clean
Double-sided Timing Belt U
Double-sided Timing Belt U
Double-sided Timing Belt U has the same performance as Timing Belt U. It has teeth on both sides of the belt and can be used for multi-axis transmission and double-sided drive. The attractive appearance and less rubber dust dispersion enable use in places where clean environment is required. The operating temprature is 80 ℃ or less.

Tooth Profile Dimension

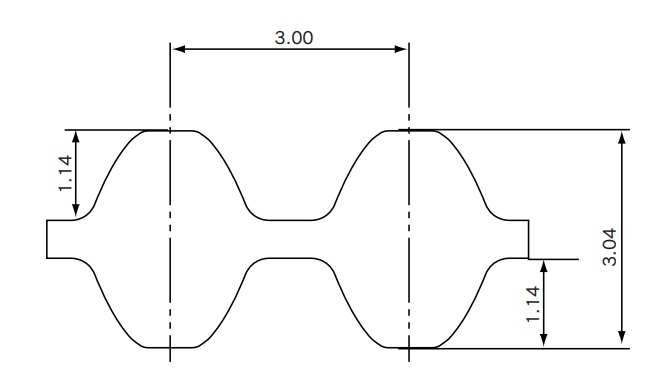

DS3M

DS3M

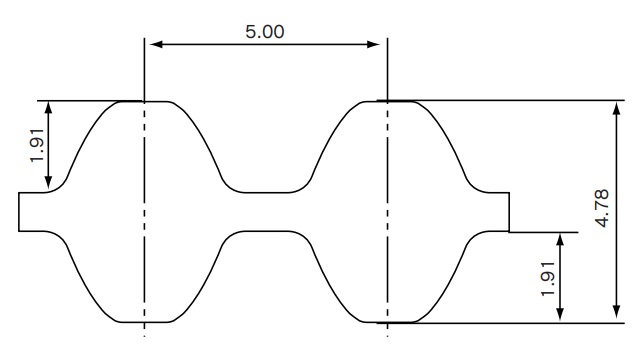

DS5M

DS5M

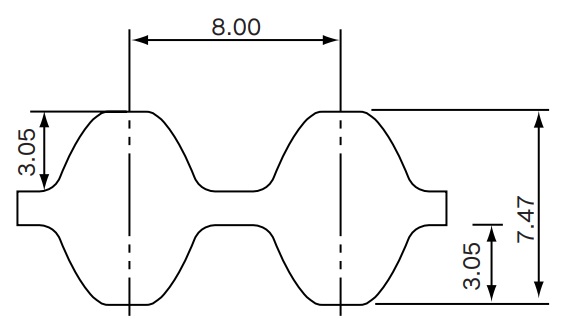

DS8M

DS8M

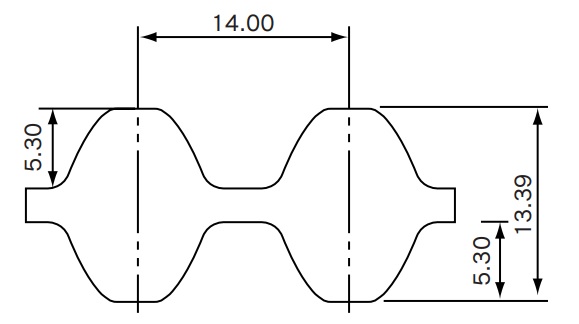

DS14M

DS14M

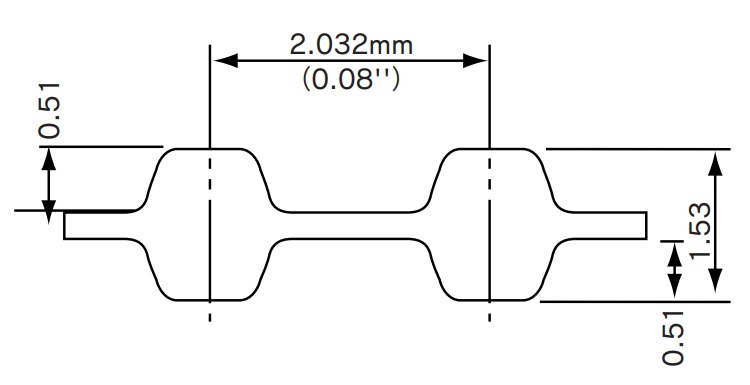

DMXL

DMXL

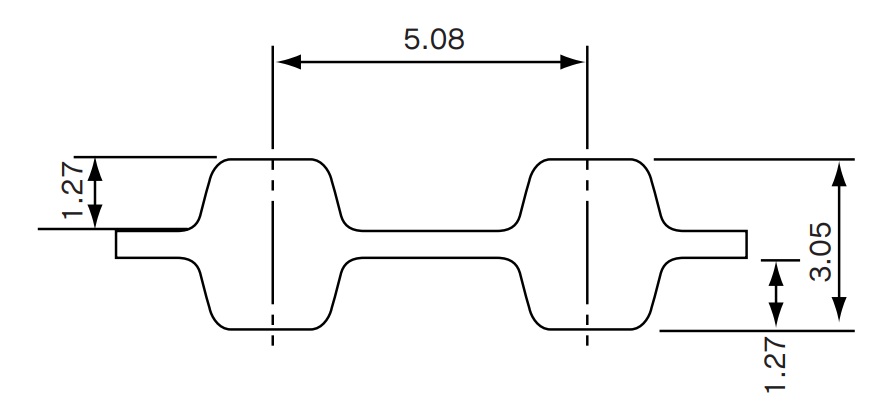

DXL

DXL

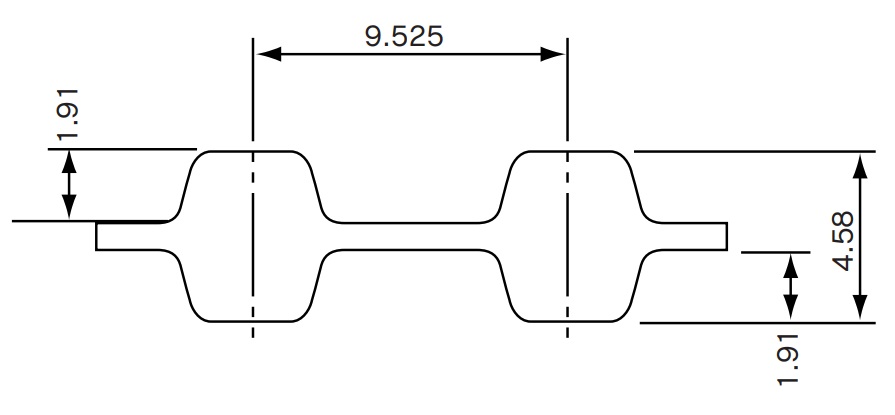

DL

DL

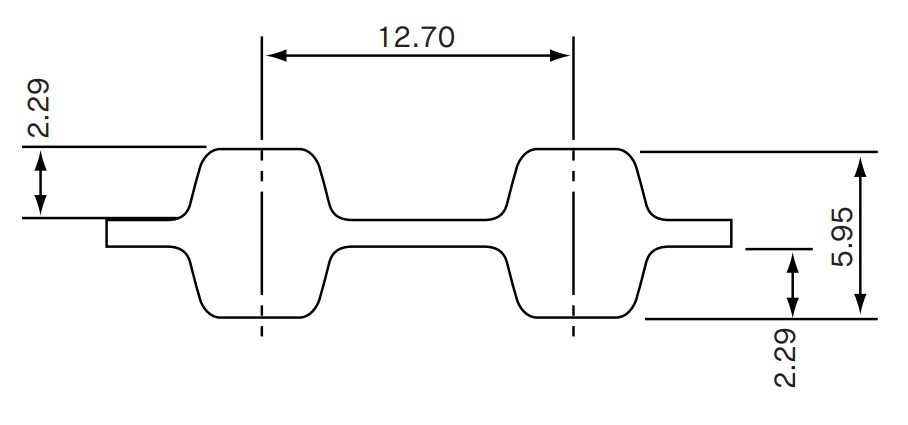

DH

DH

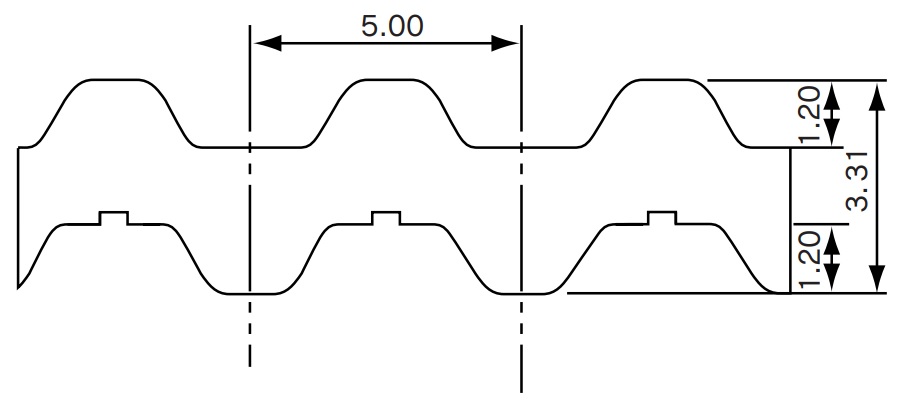

DT5

DT5

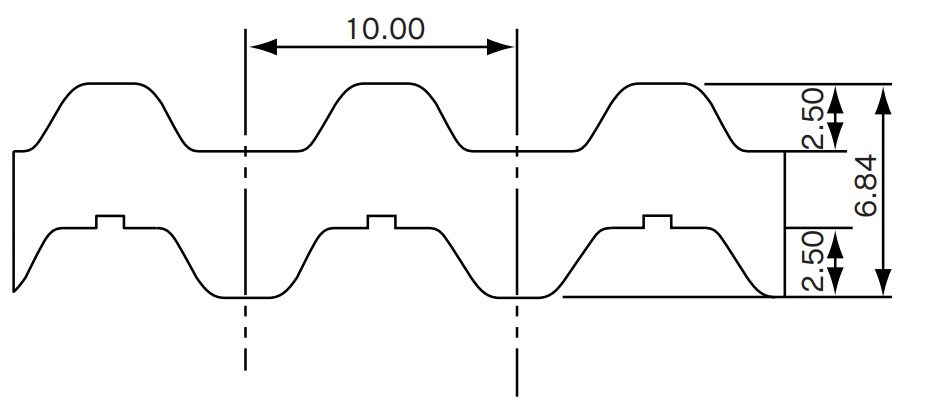

DT10

DT10
