MAXSTAR WEDGE V-belt/MAXSTAR WEDGE SUPREME

MAXSTAR WEDGE V-belt and MAXSTAR WEDGE SUPREME have a narrower upper width than the Conventional V-belt. It reduces the belt's own weight and equalizes the tension on the cord, which increases the wedge effect and enhancing grip.
Wrapped type : MAXSTAR WEDGE V-belt
Raw-edge cogged type : MAXSTAR WEDGE SUPREME

Catalog(JIS)
Catalog(RMA)
Catalog(DIN)
Contact us about this product

Lineup

MAXSTAR WEDGE V-belt
Wrapped type

MAXSTAR WEDGE V-belt

MAXSTAR WEDGE SUPREME
Raw Edge Cogged Type

MAXSTAR WEDGE SUPREME

Wrapped type
MAXSTAR WEDGE V-belt
MAXSTAR WEDGE V-belt
MAXSTAR WEDGE V-belt has a narrower upper width than the Conventional V-belt. It reduces the belt's own weight and equalizes the tension on the cord, which increases the wedge effect and enhancing grip.
It also has excellent performance such as strength, durability, and antistatic properties (the electrical resistance value passed the US RMA standard).
There are 3 types : 3V, 5V, and 8V.
Raw Edge Cogged Type
MAXSTAR WEDGE SUPREME
MAXSTAR WEDGE SUPREME
MAXSTAR WEDGE SUPREME has a cog shape and excellent flexibility. Therefore, compared to the Conventional V-belt, there is less power loss due to bending. It also has an energy saving effect.
There are 2 types : 3VX and 5VX.

Material Construction

<strong>MAXSTAR WEDGE V-Belt (Wrapped Type)</strong><br/><strong>Cover Fabric</strong>：It is highly elastic

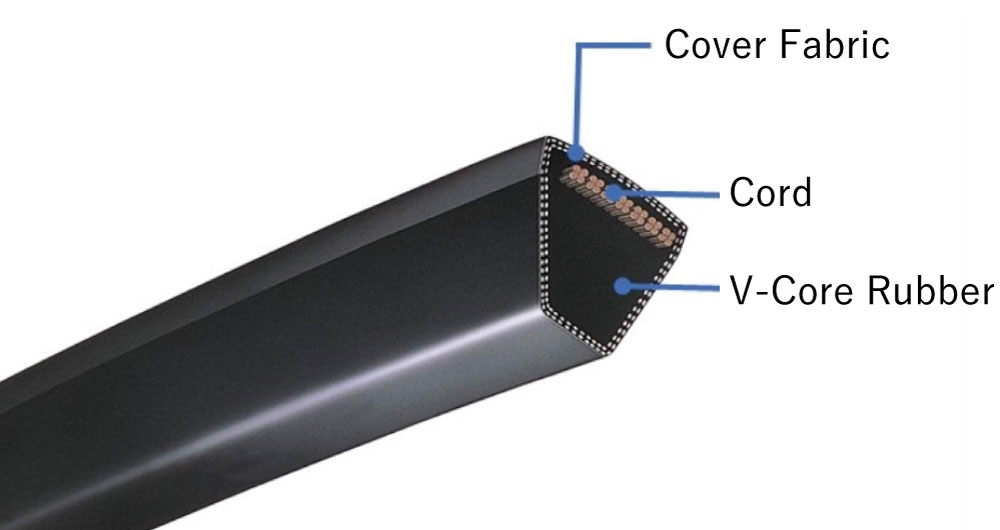

MAXSTAR WEDGE V-Belt (Wrapped Type)
Cover Fabric：It is highly elastic, can easily bend and stretch during belt rotation, and has strong resistance to abrasion.
Cord：It has high tensile strength, low elongation, and high bending fatigue resistance.
V-Core Rubber：It uses a highly flexible compounded rubber that is less deformed under high load and has excellent durability.

<strong>MAXSTAR WEDGE SUPREME (Raw Edge Cogged Type)</strong><br/><strong>Top Fabric</strong>：Highly elastic fabric reinforces the top of the belt. It also has excellent bending and streching during rotation.<br/><strong>Cord</strong>：It has high tensile strength

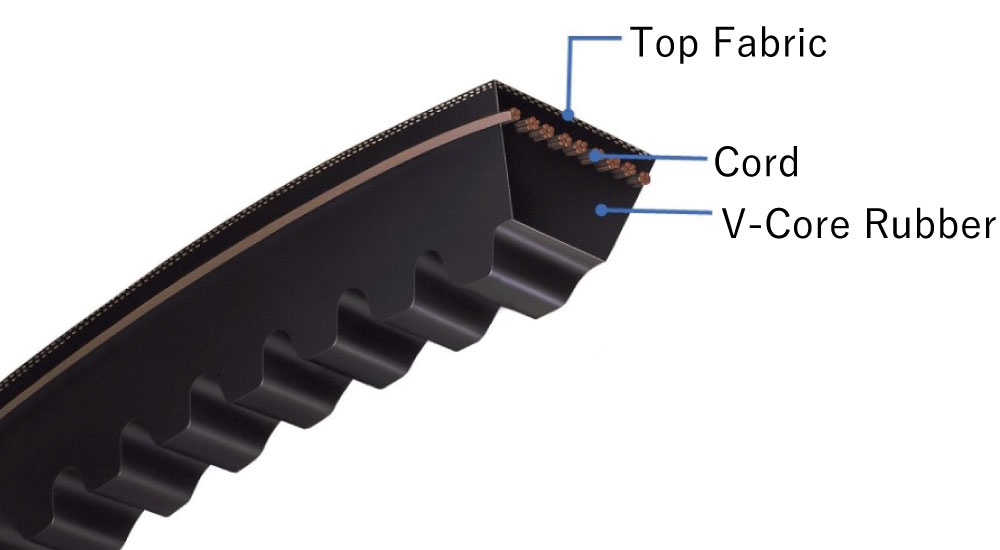

MAXSTAR WEDGE SUPREME (Raw Edge Cogged Type)
Top Fabric：Highly elastic fabric reinforces the top of the belt. It also has excellent bending and streching during rotation.
Cord：It has high tensile strength, low elongation, and high bending fatigue resistance.
V-Core rubber：It uses a highly flexible compounded rubber that is less deformed under high load and has excellent durability.
Bottom Fabric：Highly elastic fabric reinforces the bottom of the belt. It also has excellent bending and streching during rotation.

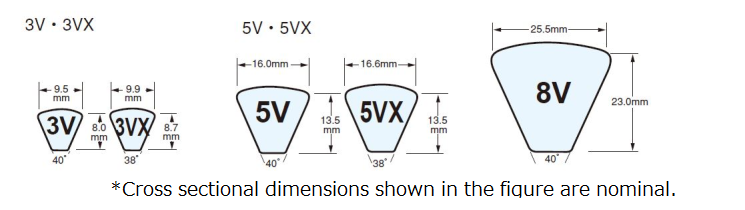

Cross Sectional Dimension
