Conventional V-belt/Red Label V-belt
Conventional V-belt/Red Label V-belt
Conventional V-belt/Red Label V-belt
V-belts for General Industry

Standard specification

Conventional V-belt/Red Label V-belt

Conventional V-belt and Red Label V-belt are the most commonly used as a means for power transmission.?
Red Label V-belt has excellent durability and are suitable for high power transmission. Its heat resistance, oil resistance, flame resistance, and antistatic performance enable its use in harsh operating conditions.

Catalog(JIS)
Catalog(RMA)
Catalog(DIN)
Contact us about this product

Lineup

Conventional V-belt
standard specification

Conventional V-belt

Red Label V-belt
Red specification

Red Label V-belt

standard specification
Conventional V-belt
Conventional V-belt
This is a set-free belt with minimal elongation and over time shrinkage during use. It is also suitable for multiple belt installations.
Red specification
Red Label V-belt
Red Label V-belt
Red Label V-belt is suitable for high power transmission by using high-strength polyester code with high stretch treatment. It also has excellent performance such as heat resistance, oil resistance, flame resistance, and antistatic properties (the electrical resistance value passed the US RMA standard).
When maintenance is difficult, Red Label V-belt exhibits superior durability even under harsh operating conditions.

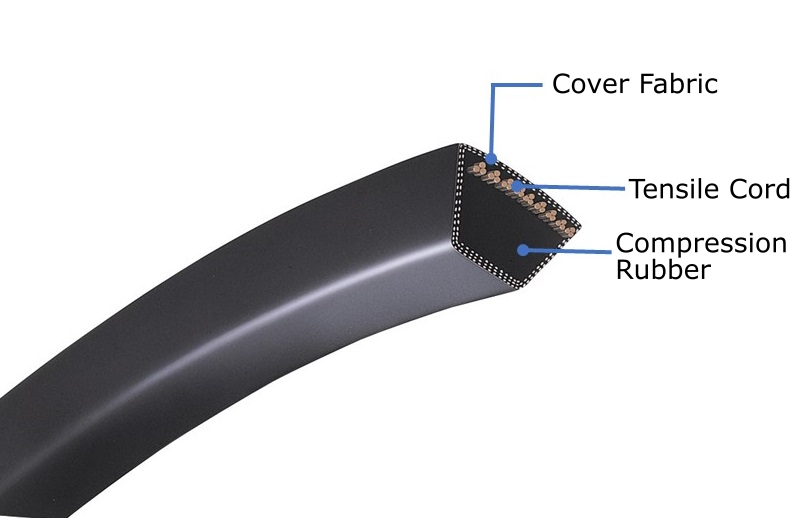

Material Construction

Cover fabric:?It is highly elastic, can easily bend and stretch while the belt is rotating, and has strong resistance to abrasion.
Cord:?It has high tensile strength, low elongation, and high bending fatigue resistance.
V-Core rubber:?It uses a highly flexible compounded rubber that is less deformed under high load and has excellent durability.

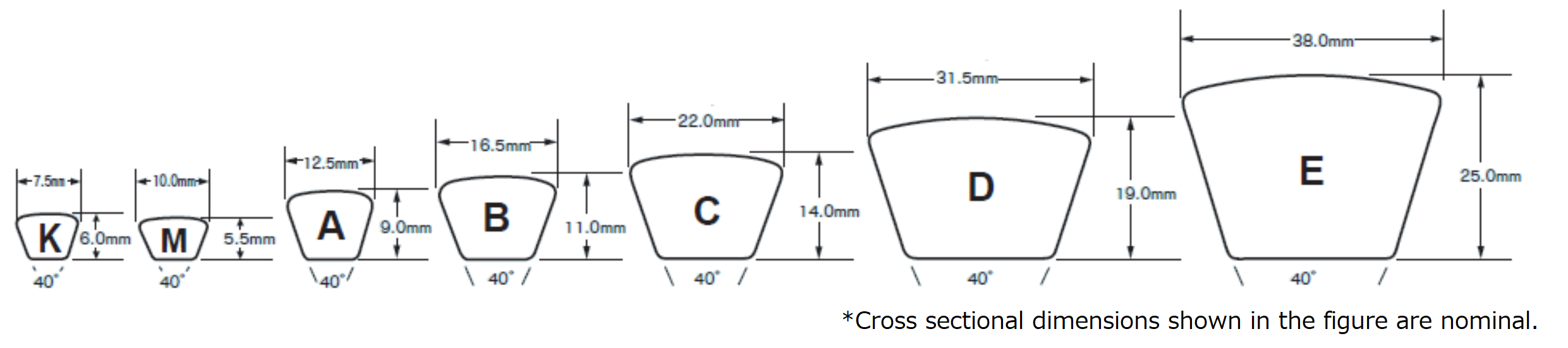

Cross Sectional Dimension
