SUPER WEDGE Ⅱ

SUPER WEDGE Ⅱ

The SUPER WEDGE Ⅱ is one of our development for heavy-duty applications where high torques have to be transmitted and shock loads can occur easily. By using a special chloroprene rubber mixture together with an aramid cord and a special cover fabric we succeeded to develop the strongest belt for applications like Crushers and Sheredders.

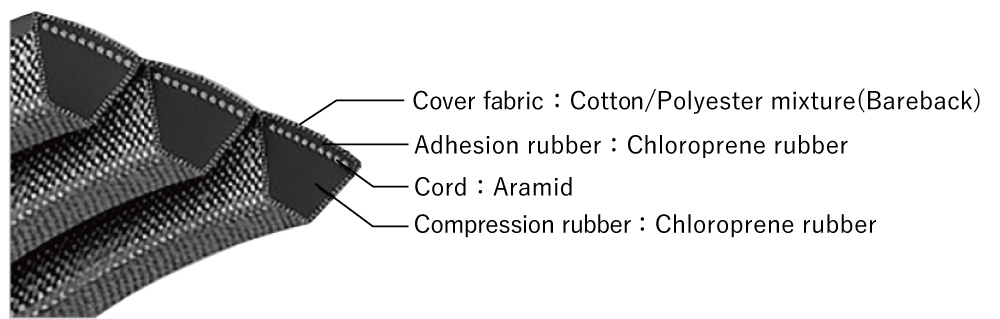

Characteristics and Construction Materials

The special fabric allows slippage during the shockloads to avoid further damages in the complete power train. Together with our unique production process for banded belts the durability of our belts is matchless on the market. The arched-top belts grant you a sustaimable sucess for your application.
■Designed for extra heavy duty applications.
■Aramid cords with bareback fabric for clutch effect.
■Reduced belt stretch under heavy loads and torque.
■High working loads, high shock loads.
■Heat resistance temperature (℃/℉):+90/+194
■Cold resistance temperature (℃/℉):-30/-22
■Max. belt speed (m/s) :40
■Wear resistance:Normal
■Electric conductivity :Yes

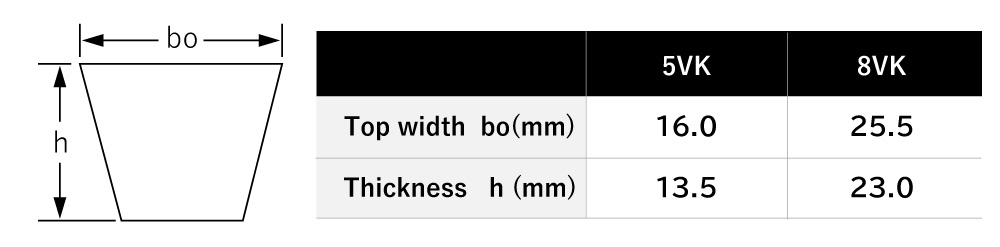

Cross Sectional Dimensions

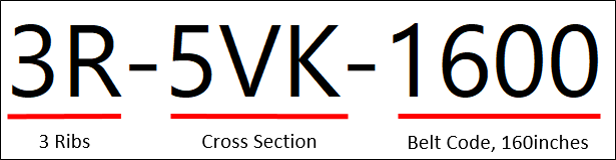

Product Code
